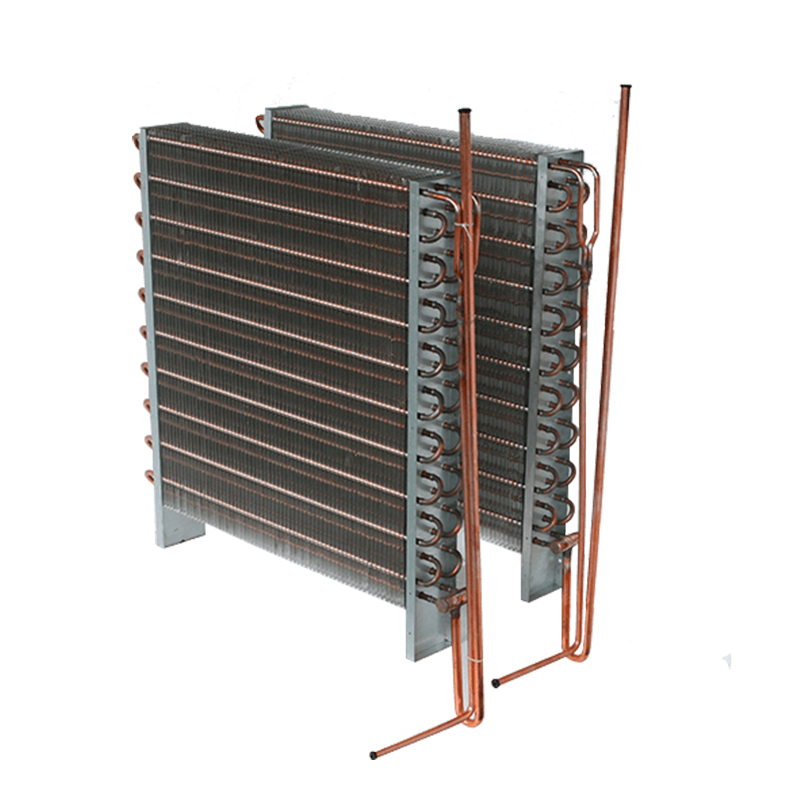

The Evaporator is a fundamental heat exchange device designed to facilitate refrigerant evaporation, absorbing heat from surrounding media (air, water, or industrial fluids) in refrigeration, HVAC, and industrial cooling systems. Its core function involves converting liquid refrigerant into vapor by leveraging latent heat absorption, making it essential for temperature control in diverse applications. Constructed with materials like copper tubes and aluminum fins for optimal thermal conductivity, evaporators are engineered to balance efficiency, durability, and adaptability across varying operational conditions. Modern designs prioritize low-pressure drop, corrosion resistance, and customizable configurations to meet the demands of residential, commercial, and industrial sectors.
Evaporators achieve heat transfer coefficients ranging from 2,500–4,500 W/(m²·K) through advanced tube-fin designs, ensuring rapid heat absorption. For instance, copper-aluminum composite structures combine copper’s superior conductivity (401 W/(m·K)) with aluminum’s lightweight properties, enabling 20% faster heat transfer than aluminum-only models . The multi-pass tube arrangement—featuring 8–12 parallel flow channels—maximizes contact between refrigerant and the medium, critical for applications requiring precise temperature control, such as pharmaceutical cold storage.
Copper Tubes: Resistant to oxidation and chemical corrosion, copper tubes undergo electrolytic plating (nickel-chromium layer, 5–10μm thick) to extend service life in high-humidity or coastal environments. Salt spray tests confirm 15,000+ hours of corrosion resistance .
Aluminum Fins: Treated with chromate conversion coatings to withstand 500+ hours of salt spray , aluminum fins enhance heat dissipation while maintaining structural integrity.
Evaporators operate efficiently across temperature ranges of -40°C to 120°C and handle pressures up to 4.5 MPa, accommodating diverse refrigerants like HFCs (R410A), HCs (R290), and natural refrigerants (CO₂/R744). This versatility supports applications from ultra-low-temperature freezing (-25°C) to high-temperature industrial processes (100°C+).
Tube Diameters: Options from 6mm to 19mm optimize refrigerant flow rates (0.05–0.15 m³/h for R32) while minimizing pressure drop (≤0.06 bar) .
Fin Spacing: Adjustable between 1.8–4.0 mm balances airflow resistance and heat exchange area, ideal for HVAC systems (1.8–2.5 mm) or low-fouling industrial environments (3.0–4.0 mm).
Configurations: Available in U-bend, serpentine, or multi-circuit designs to fit compact spaces or high-capacity systems.
Self-Cleaning Surfaces: Nano-ceramic or hydrophilic coatings reduce scale buildup by 40%, extending cleaning intervals to 6–12 months in standard environments .
Modular Construction: Quick-connect fittings and removable tube bundles simplify component replacement, reducing downtime by 30% compared to traditional designs.
Used in split air conditioners and chillers to cool indoor spaces, with dehumidification capabilities (10–20 liters/hour moisture removal) in commercial buildings .
Critical in blast freezers and cold storage warehouses to maintain perishables at -18°C, ensuring product safety and shelf life. Evaporators with anti-microbial coatings are preferred for dairy and beverage processing.
Handles corrosive fluids (e.g., acids, solvents) in reactors and distillation columns, with titanium or Hastelloy C-276 variants for pH 1–14 environments .
Integrates with solar thermal systems to store heat for off-grid applications, achieving 90%+ thermal efficiency in energy recovery cycles .
Cools server rooms by removing sensible heat (18–27°C target), ensuring stable operation of high-performance computing equipment.
Q: How does an evaporator differ from a condenser?
A: An evaporator absorbs heat to vaporize refrigerant, while a condenser releases heat to liquefy vapor. Together, they form the core of refrigeration cycles, with evaporators acting as the "cold side" and condensers as the "hot side" .
Q: What causes evaporator fouling, and how is it prevented?
A: Fouling occurs due to mineral deposits, oil residue, or biological growth. Prevention methods include:
Regular Cleaning: Use non-abrasive detergents every 6–12 months.
Self-Cleaning Coatings: Hydrophilic or nano-ceramic layers reduce scale adhesion by 40% .
Flow Optimization: Maintaining 2–3 m/s liquid velocity prevents sedimentation.
Q: Can evaporators operate in ammonia refrigeration systems?
A: Yes. Ammonia-compatible designs use brass fittings and monel alloy gaskets to resist corrosion, meeting IIAR safety standards for industrial ammonia systems .
