Fin and tube heat exchangers are the backbone of many HVAC and industrial refrigeration systems. At Shanghai Sunrise Refrigeration Appliances Co., Ltd., we have over 29 years of experience designing and producing fin and tube heat exchangers tailored for commercial, industrial, and specialized applications. This guide provides a deep dive into the design principles, types of fins, tube layouts, material options, performance tradeoffs, maintenance considerations, and real-world industrial applications, helping engineers and system designers select the right solution for their needs.

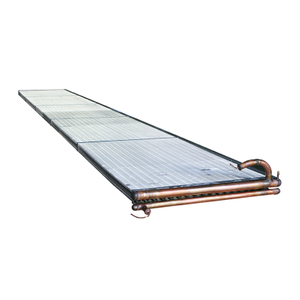

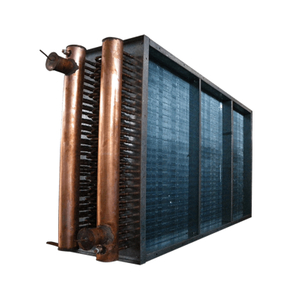

A fin and tube heat exchanger is a thermal device designed to transfer heat efficiently between two fluids—usually air and a liquid refrigerant or process fluid—through a series of tubes and attached fins. The tubes carry the fluid, while the fins increase the surface area exposed to the air, enhancing heat transfer. These units are widely used in HVAC systems, refrigeration units, and process cooling applications.
Fins play a critical role in the performance of heat exchangers. By increasing the air-side surface area, fins allow more efficient heat transfer from the tube to the surrounding air. However, fin design is a balancing act: denser fins improve heat transfer but can increase airflow resistance, leading to higher pressure drops. Similarly, the fin material, thickness, and spacing must be optimized to minimize fouling and ensure long-term durability, making fin selection a vital part of coil design.
Selecting the correct fin type is crucial for balancing thermal efficiency, airflow resistance, and maintenance requirements. Fin design also impacts the lifespan of the coil and operational costs.
L-fin coils are lightweight and cost-effective, offering moderate thermal performance. They are commonly used in general refrigeration and air conditioning applications where moderate airflow is acceptable. L-fins are easy to clean and maintain, making them suitable for environments with minimal fouling.
G-fin designs involve embedding the fin into the tube surface, improving heat transfer by increasing the contact area. These fins provide excellent thermal performance and are resistant to mechanical damage, making them ideal for high-demand refrigeration systems where longevity and efficiency are critical.
Extruded fins are mechanically bonded or integrated into the tube through extrusion processes. They provide superior heat transfer, structural rigidity, and durability under high-temperature and high-pressure conditions. Extruded fins are often used in process cooling applications or industrial systems where heavy-duty performance is required.
Welded fins are attached to tubes through welding, providing a secure, permanent bond. These fins are particularly resistant to vibration and mechanical stress, making them suitable for mobile or industrial equipment subjected to repeated operation cycles. The welding process ensures minimal thermal resistance between the tube and fin.
The arrangement of tubes, pitch, and fin density directly impacts heat exchanger efficiency, airflow resistance, and overall system performance.
Face velocity—the speed of air moving across the coil—must be matched to the fin density to avoid excessive pressure drops. High-density fins provide greater heat transfer but may restrict airflow, requiring more powerful fans or blowers. Conversely, lower fin density reduces resistance but may limit thermal performance. Achieving the right balance is essential for optimal energy efficiency.
Tube layout affects both the heat transfer and the ease of cleaning. Closer tube spacing increases thermal performance but can trap debris and complicate maintenance. Wider tube pitch improves airflow and reduces fouling, but may slightly reduce efficiency. Shanghai Sunrise engineers use advanced simulation techniques to optimize layouts for each application, ensuring the best compromise between efficiency, pressure drop, and serviceability.
Material selection is critical in heat exchanger design, as it affects durability, corrosion resistance, and thermal performance.
Aluminum fins are lightweight and offer excellent heat conductivity. They are suitable for applications where weight and efficiency are priorities. Aluminum is easy to form into complex fin designs and provides good corrosion resistance, especially when combined with hydrophilic coatings.
Copper tubes offer superior thermal conductivity and are highly resistant to corrosion. They are widely used in refrigeration systems, HVAC units, and industrial heat exchangers. Copper’s excellent heat transfer properties make it a standard choice for high-performance coils.
For extreme environments or applications involving corrosive fluids, stainless steel tubes and fins provide exceptional resistance to chemical attack and long-term durability. While more expensive, stainless steel ensures reliability in challenging industrial conditions.
Hydrophilic and other anti-corrosion coatings enhance the longevity of finned tube coils by preventing oxidation, water staining, and fouling. Shanghai Sunrise offers customized coating solutions tailored to the operational environment, maximizing service life while maintaining thermal efficiency.
The manufacturing process determines the final performance, reliability, and serviceability of fin and tube heat exchangers.
High-quality fin and tube heat exchangers require precise joining methods. Brazing creates strong, leak-free bonds suitable for high-pressure applications. Soldering is often used for smaller or moderate-pressure units. Mechanical bonding can simplify production while maintaining thermal efficiency.
Proper handling during transport and installation is critical. Fins are delicate and can be easily bent or damaged. Shanghai Sunrise provides guidelines for mounting, airflow path optimization, and rack installation to ensure maximum performance and longevity. Correct installation minimizes energy consumption and reduces maintenance costs over the life of the coil.
Regular maintenance ensures long-term performance of fin and tube heat exchangers.
Coils must be accessible for routine cleaning to remove dust, grease, and debris that can impair airflow. Designs should consider space for cleaning tools or pressure washing.
Protecting fins from mechanical damage is critical. Aluminum fins, in particular, can bend easily, reducing efficiency. Protective guards or coatings can extend coil life.
Minor fin damage can often be repaired, but severe corrosion or tube failure may require replacement. With proper material selection and maintenance, finned tube coils from Shanghai Sunrise are designed to provide many years of reliable service in demanding environments.
Fin and tube heat exchangers are highly versatile, finding use in diverse industrial and commercial applications.
In commercial refrigeration, walk-in freezers require high-efficiency coils to maintain low temperatures with minimal energy use. L-fin and G-fin designs are common, providing balanced airflow and thermal performance. Shanghai Sunrise offers pre-configured coil variants optimized for these environments.
Industrial process cooling applications often demand high-capacity heat transfer with robust mechanical design. Extruded or welded fin coils are ideal, with customized tube layouts to handle varying fluid loads. Shanghai Sunrise engineers can tailor coil specifications for maximum efficiency and durability.
Selecting the right fin and tube heat exchanger requires careful consideration of fin type, tube layout, materials, and performance tradeoffs. Shanghai Sunrise Refrigeration Appliances Co., Ltd. combines decades of expertise with advanced manufacturing capabilities to deliver high-performance, durable, and efficient finned tube coils for HVAC, refrigeration, and industrial applications. For custom designs, sample drawings, or technical specifications, contact us today to explore how our solutions can meet your system requirements.
Q1: What is the main advantage of using fins on a tube heat exchanger?
A1: Fins increase the air-side surface area, enhancing heat transfer efficiency and allowing smaller coil sizes for the same performance.
Q2: How do I choose between L-fin and G-fin coils?
A2: L-fins are cost-effective and suitable for moderate performance, while G-fins provide higher efficiency, better durability, and resistance to mechanical damage.
Q3: Can these coils handle corrosive environments?
A3: Yes, using copper or stainless steel tubes with aluminum fins and anti-corrosion hydrophilic coatings can ensure long-term resistance to corrosion.
Q4: How often should fin and tube heat exchangers be cleaned?
A4: Maintenance depends on the environment, but regular cleaning every 6–12 months is recommended to maintain airflow and thermal efficiency.
