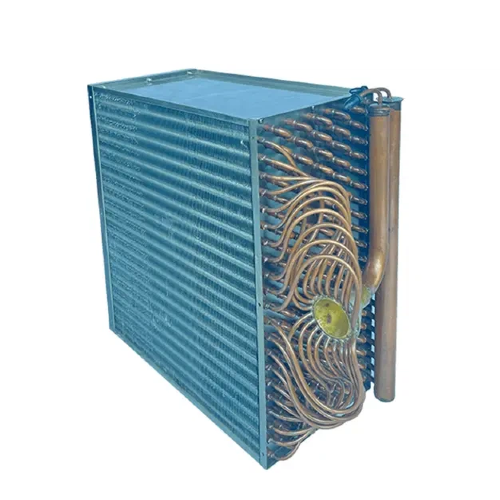

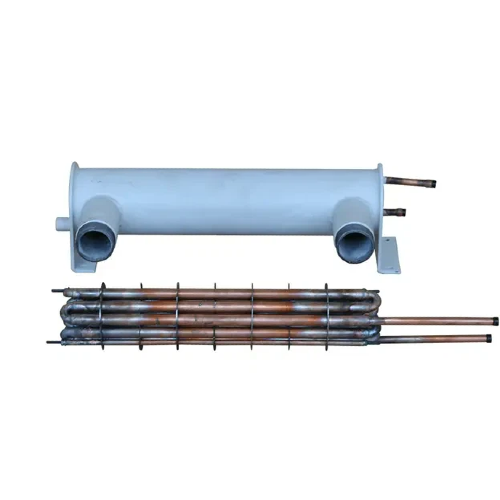

Selecting the right evaporator coil is a crucial step in ensuring the optimal performance and energy efficiency of refrigeration and air conditioning systems. The evaporator coil is the part of the system that absorbs heat from the air, which then allows the refrigerant to cool the surrounding area. Choosing the correct specifications for an evaporator coil ensures better heat transfer efficiency, reduces energy consumption, and helps prevent breakdowns and malfunctions in the system.
In this article, we’ll walk through the key components that need to be considered when specifying an evaporator coil: tube size, rows, fin pitch, hydrophilic coating, and capacity. Understanding these elements will enable you to make informed decisions and select the right evaporator coil for your needs.
The size of the tubes used in an evaporator coil directly impacts the heat transfer performance, refrigerant flow, and overall system efficiency. The tube size dictates how much refrigerant can flow through the coil and how efficiently heat is transferred from the air to the refrigerant. Tube size is often specified in diameter and wall thickness.
The diameter of the tubes influences the surface area available for heat exchange. Larger tubes provide more surface area, which can be beneficial for heat transfer in systems requiring higher cooling capacities. However, larger tubes also tend to reduce the velocity of refrigerant flow, which can lead to less effective heat absorption.
Conversely, smaller tubes provide less surface area but maintain higher refrigerant flow velocity, which can improve heat exchange in certain applications. Therefore, selecting the right tube size is a balance between the required heat transfer rate and the refrigerant flow characteristics.
Evaporator coils are typically made from copper, aluminum, or steel tubes, each offering its own set of benefits. Copper is widely preferred due to its excellent heat conductivity and resistance to corrosion. Aluminum is often used for its lightweight properties and good corrosion resistance, while steel tubes are generally used for high-pressure systems or those exposed to aggressive environments.
The number of rows in an evaporator coil refers to the number of layers of tubes stacked together. The number of rows plays a significant role in the coil's cooling efficiency and its ability to handle various refrigerant flows.
Single-Row Coils: Typically used in smaller or less demanding applications, single-row coils provide a more compact design. While they are suitable for systems with lower cooling loads, they do not offer the same level of heat absorption as multi-row coils.
Multi-Row Coils: These coils have multiple layers of tubes stacked on top of each other. Multi-row coils are ideal for systems requiring higher cooling capacities, as they offer increased surface area for heat exchange. The more rows you have, the greater the heat absorption capability. However, this can also increase the coil’s size and weight, requiring more space for installation.
The number of rows in a coil affects the temperature drop across the coil, as well as its overall cooling capacity. Multi-row coils are often used in larger systems, such as refrigeration units, air handlers, and cooling systems in industries like food storage and HVAC systems. Selecting the appropriate number of rows ensures efficient cooling performance without compromising system design.
Number of Rows | Effect on Performance | Ideal Use |
Single-Row Coils | Lower heat transfer efficiency, compact design | Smaller cooling systems or systems with lower loads |
Two-Row Coils | Balanced heat transfer, more surface area than single-row | Medium-sized systems with moderate cooling needs |
Multi-Row Coils | Higher heat transfer efficiency, larger heat absorption area | Large commercial refrigeration or HVAC systems |
Fin pitch refers to the spacing between the fins attached to the evaporator coil’s tubes. Fins are essential for increasing the surface area of the coil, which enhances the heat exchange process. The fin pitch determines the efficiency of heat transfer as well as the coil's ability to maintain airflow.
Tighter Fin Pitch: When the fins are spaced closely together, the surface area is maximized, allowing for greater heat exchange efficiency. This design is particularly effective in applications where air velocity is lower, as it ensures that the air passes over the fins for a longer period, promoting heat transfer.
Wider Fin Pitch: Wider spacing between fins reduces the total surface area but allows for better airflow. This configuration works well in environments where airflow is critical to the system’s operation. Wider fins also help reduce the risk of debris or dirt accumulation, which can hinder the heat transfer process.
The choice between tight and wide fin pitch depends on the type of system and its airflow characteristics. For example, in refrigeration units with low airflow, tighter fin pitch would be preferred, while systems with high airflow might benefit from a wider fin pitch.
Fin Pitch | Effect on Performance | Ideal Use |
Tight Fin Pitch | Increased heat transfer efficiency, longer air contact | Low-airflow environments, high-efficiency systems |
Wider Fin Pitch | Better airflow, reduced risk of dirt accumulation | High-airflow systems, applications with heavy debris |
Hydrophilic coatings are applied to the fins of the evaporator coil to enhance the moisture-wicking properties of the coil. This type of coating reduces the risk of water droplets accumulating on the fins, which can negatively affect the coil’s efficiency and lead to potential issues like corrosion.
Improved Drainage: The coating causes water droplets to spread out and drain away more easily, preventing water build-up on the coil. This improves overall performance, especially in humid environments.
Reduced Maintenance: Since water droplets are less likely to accumulate, the hydrophilic coating reduces the chances of dirt and debris sticking to the coil, which can clog the fins and reduce heat transfer efficiency. This results in reduced maintenance requirements and improved coil longevity.
Corrosion Resistance: The hydrophilic coating acts as a protective barrier, preventing the coil from corroding, particularly in harsh or marine environments where humidity levels are high.
Hydrophilic coatings are particularly beneficial in environments with high moisture, such as commercial refrigeration units, air conditioners, and coastal regions with salty air. By preventing rust and maintaining efficient drainage, hydrophilic coatings extend the lifespan of the evaporator coil.
The capacity of an evaporator coil refers to its ability to absorb heat from the air, which is typically measured in BTUs (British Thermal Units) per hour. The coil capacity must align with the cooling load requirements of the system to ensure optimal performance.
The capacity of an evaporator coil is based on several factors:
Cooling Load: The amount of heat that needs to be removed from the system. This depends on the size of the area to be cooled and the heat-generating activities taking place.
Refrigerant Type: Different refrigerants have different heat absorption properties. The coil’s capacity must be matched to the type of refrigerant used in the system to ensure efficient heat transfer.
Airflow: The amount of air that needs to pass through the coil to facilitate heat exchange. Higher airflow increases the coil’s capacity but also requires larger fins or different coil designs to manage airflow and ensure optimal heat transfer.
By correctly calculating the required capacity, you can ensure that the evaporator coil operates at its maximum efficiency, preventing energy waste and ensuring consistent cooling performance.
Capacity | Effect on System Performance | Ideal Use |
Low Capacity | Suitable for smaller systems with low cooling demands | Small refrigeration units, under-counter coolers |
Medium Capacity | Ideal for medium-sized commercial systems | Supermarket fridges, medium HVAC systems |
High Capacity | Designed for large-scale commercial and industrial use | Large industrial refrigeration, cold storage systems |
Each of the factors discussed—tube size, rows, fin pitch, hydrophilic coating, and capacity—works in synergy to determine the overall efficiency and performance of an evaporator coil. Selecting the right combination ensures that the coil will effectively meet the cooling needs of the system, while also optimizing energy use and reducing the likelihood of breakdowns.
For example, a system with a high cooling load will require an evaporator coil with a higher capacity and multiple rows, along with a tighter fin pitch to ensure efficient heat transfer. Additionally, hydrophilic coatings can help maintain performance over time by reducing maintenance and preventing corrosion in high-humidity environments.
It’s important to assess the unique requirements of your system—such as its cooling capacity, airflow, and operating environment—before making these decisions. Properly specifying these factors will ensure the evaporator coil operates at peak performance, offering long-term efficiency and reliability.
Selecting the right evaporator coil requires careful consideration of several key factors, including tube size, the number of rows, fin pitch, hydrophilic coatings, and capacity. Each of these specifications directly impacts the overall efficiency of your refrigeration or cooling system. By understanding how each element contributes to performance, you can make informed decisions that result in long-term energy savings, enhanced cooling efficiency, and lower maintenance costs.
At Shanghai Sunrise Refrigeration Equipment, we understand the importance of these factors and offer a range of high-quality evaporator coils tailored to meet your system’s unique needs. Our products are designed for optimal performance and durability, ensuring your systems run efficiently over the long term.
We invite you to explore our offerings and get in touch with our team to discuss how we can help you select the perfect evaporator coil for your needs. Let us assist you in achieving the best possible performance for your refrigeration or cooling system.
Q1: What is the ideal tube size for an evaporator coil?
The ideal tube size depends on the cooling load and refrigerant type. Larger tubes are better for higher capacity systems but may reduce flow velocity, while smaller tubes increase flow but might not provide enough surface area for heat transfer in larger systems.
Q2: How does the number of rows in an evaporator coil affect performance?
Multi-row coils provide more surface area for heat exchange and are suitable for systems with higher cooling loads. However, more rows can result in larger coil size and require more space.
Q3: What are the benefits of a hydrophilic coating on an evaporator coil?
Hydrophilic coatings improve moisture drainage, reduce dirt buildup, and provide added corrosion resistance, particularly in high-humidity and marine environments.
Q4: How do I calculate the correct capacity for my evaporator coil?
Capacity is determined by the system’s cooling load, refrigerant type, and airflow requirements. It’s essential to match the coil’s capacity to the system’s cooling needs to ensure efficiency.
Q5: Does fin pitch affect the lifespan of the evaporator coil?
Yes, fin pitch affects both heat transfer efficiency and airflow. Tighter fin pitch improves heat transfer but may lead to clogging, while wider fin pitch improves airflow and reduces debris buildup, enhancing the coil’s lifespan.
