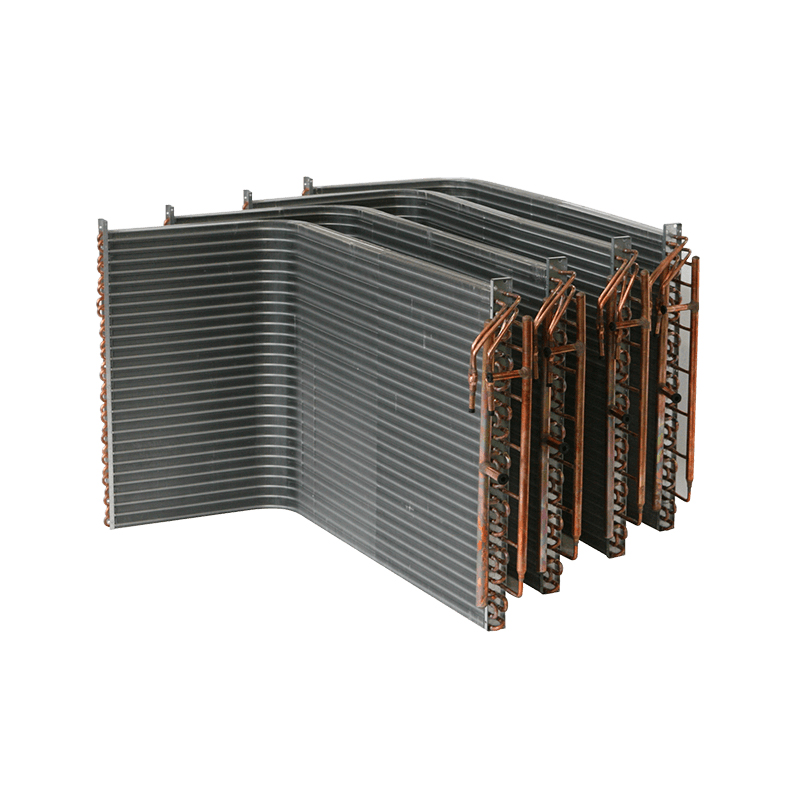

Commercial refrigeration components carry massive operational stakes. A failing or improperly specified heat rejection unit directly causes compressor strain. It skyrockets energy consumption and triggers catastrophic system downtime across the facility. Facility managers and engineers often face the challenge of replacing or upgrading coils without access to original equipment manufacturer specifications. This missing data risks mismatched capacity, poor physical fit, and rapid environmental degradation. Evaluating these specifications requires a solid technical framework built on field experience. We will compare material trade-offs, analyze dimensional constraints, and determine when to source standard replacements versus engineering solutions tailored to specific application demands. You need reliable data to keep systems running efficiently and prevent costly mechanical failures.
System Balance is Critical: A condenser coil must be precisely matched to the compressor and evaporator capacities to maintain thermodynamic stability and prevent equipment failure.
Environment Dictates Materials: Fin density, tube materials, and anti-corrosion coatings must be specified based on the installation environment (e.g., coastal air, industrial pollutants, high-debris areas).
Dimensional Accuracy Prevents Delays: Exact measurements of tube outside diameter (OD), wall thickness, supply/return locations, and overall footprint are non-negotiable for drop-in replacements.
Customization Solves Legacy Issues: Specifying a custom condenser coil is often the most cost-effective route for obsolete systems, unique process cooling applications, or retrofits requiring upgraded heat rejection capacity within an existing footprint.
Thermodynamic stability relies on precise component matching. You must define the success criteria for the entire cooling loop before specifying replacement parts. The evaporator absorbs heat from the refrigerated space. The condenser must efficiently reject that absorbed heat plus the heat of compression generated by the compressor. This relationship defines the core function of the condenser and evaporator in a refrigeration system. If one component underperforms, the entire cycle destabilizes rapidly.
Capacity matching prevents severe mechanical failures. An undersized condenser cannot reject heat fast enough. This leads to high head pressures. High head pressure forces the compressor to work harder, increasing amp draw and operating temperatures. Prolonged operation under these conditions degrades compressor oil. It causes premature motor burnout. It also reduces the overall cooling capacity of the system. You will see short-cycling and tripped high-pressure switches. The condenser must also provide adequate subcooling. Subcooling ensures a solid column of liquid refrigerant reaches the expansion valve. Flash gas in the liquid line, caused by poor heat rejection, severely degrades evaporator performance.
Oversizing a condenser carries different risks. An oversized unit drops head pressures too low during cooler ambient conditions. Low head pressure starves the expansion valve. The valve requires a specific pressure differential to feed liquid refrigerant into the evaporator properly. Poor expansion valve operation leads to erratic cooling. You might experience coil freezing and potential liquid slugging at the compressor. Liquid slugging occurs when unevaporated liquid refrigerant enters the compressor cylinders, causing immediate mechanical destruction.
System architecture dictates specific design requirements. The specific refrigerant phase changes determine the required internal volume of the coil. Pressure ratings must align with the chosen refrigerant. Reversible systems demand additional engineering. Heat pumps and hot gas defrost cycles reverse the flow of refrigerant. The coil must handle dual-mode duty effectively. It acts as a condenser in one mode and an evaporator in the other. This requires careful consideration of header design, circuiting, and liquid drainage. You have to ensure optimal performance in both operational states without trapping oil or restricting flow.
You must differentiate between air-cooled and water-cooled condenser requirements early in the specification process. The cooling medium dictates the physical structure of the heat exchanger. Air-cooled units rely on fans to move ambient air across finned tubes. Water-cooled units use water cascading over tubes or shell-and-tube designs. Ensure the coil design aligns with the specific application. Heavy industrial process cooling demands different specifications than commercial food storage. Air-cooled systems require massive surface areas, while water-cooled systems rely on high thermal conductivity and flow rates.
Capacity and thermal performance dictate system efficiency. You must evaluate the Total Heat of Rejection (THR) requirements. This value is measured in British Thermal Units per hour (BTU/hr). It represents the total thermal load the coil must dissipate. Assess the required Temperature Difference (TD) between the condensing temperature and the entering ambient air. A standard design might use a 10 to 15-degree Fahrenheit difference. Higher ambient environments require larger coils to maintain the same capacity. If you operate a facility in a desert climate, standard off-the-shelf coils will likely fail to meet your THR requirements during peak summer months.
Dimensional constraints determine installation success. Exact measurements are non-negotiable for Request for Quotes (RFQs). You must record the finned height and finned length. Measure the overall dimensions, including the casing and mounting flanges. Document the exact supply and return header locations. A fraction of an inch off can prevent a drop-in installation. Specify tube geometry requirements based on operating pressures and flow rates. Common outside diameters include 3/8-inch, 1/2-inch, or 5/8-inch. Wall thickness must increase for higher pressure applications.
Follow these steps to measure a coil accurately in the field:
Measure the finned height from the top tube sheet to the bottom tube sheet.
Measure the finned length from the left endplate to the right endplate.
Measure the overall length, including the return bends and headers.
Count the number of tube rows deep.
Determine the tube outside diameter using calipers.
Map the exact vertical and horizontal coordinates of the supply and return connections relative to the casing edges.
Utilize standardized blank coil drawing guidelines. Templates capture accurate manifold configurations. They prevent fabrication errors. A well-documented drawing ensures the replacement condenser coil matches the existing piping layout perfectly. This eliminates the need for field modifications and reduces installation labor. Poor header design leads to uneven refrigerant distribution. Some circuits will be starved while others are flooded. This reduces the effective heat transfer area of the coil.
Airflow and fan compatibility require careful calculation. Evaluate the relationship between the coil's face area and the required Cubic Feet per Minute (CFM). Face area determines the air velocity across the fins. High velocity increases heat transfer but also raises air resistance. Assess static pressure drops across the coil depth. Existing condenser fans must overcome this air resistance without motor overload. You must plot the new coil's air resistance against the existing fan's performance curve. If the new coil has a higher pressure drop, the fan will move less air. This reduction in CFM can completely negate the benefits of a larger coil surface area.
Tube materials heavily influence heat transfer and maintenance. Copper remains the industry standard. It offers excellent heat transfer properties. Copper is highly durable and easy to repair in the field with standard brazing techniques. Aluminum offers a lighter weight alternative. It carries a lower raw material cost. However, aluminum is significantly harder to field-repair if a leak develops. Internal tube geometry also matters. Rifled or grooved internal tubes create refrigerant turbulence. This turbulence breaks the boundary layer of the fluid. It enhances heat transfer efficiency compared to smooth-bore tubes.
Fin design dictates airflow dynamics and fouling rates. You must evaluate Fins Per Inch (FPI) carefully. High-density fins maximize surface area. A coil with 14 to 20 FPI delivers maximum heat transfer in clean environments. Low-density fins prevent clogging. A coil with 8 to 12 FPI is necessary for high-debris environments like agricultural facilities or industrial plants. Fin shape also impacts performance. Louvered fins disrupt airflow to increase heat transfer efficiency. They also create higher air resistance and trap dirt easily. Flat or corrugated fins offer lower pressure drops. They are much easier to clean during routine maintenance.
Corrosion protection extends equipment lifespan. Assess environmental risks before finalizing materials. Salt spray destroys unprotected coils in coastal areas. Chemical washdowns in food processing plants corrode standard metals rapidly. Urban pollution introduces acidic compounds to the air. Evaluate specific coating solutions based on these threats. When dissimilar metals like copper tubes and aluminum fins are exposed to an electrolyte like saltwater or polluted condensation, galvanic corrosion occurs. The aluminum fins act as a sacrificial anode and rapidly degrade. This destroys the thermal bond between the fin and the tube.
Coating application methods determine the level of protection. E-coating involves dipping the entire coil in an electrically charged bath. This ensures complete coverage, even in the microscopic crevices between the fins and tubes. Spray-on coatings often miss these hidden areas, leaving them vulnerable to corrosion.
Coating / Material Strategy | Primary Application Environment | Performance Trade-offs |
|---|---|---|
Standard Uncoated (Copper/Aluminum) | Clean, climate-controlled, inland areas. | Lowest initial expense, highest baseline heat transfer, highly susceptible to chemical/salt corrosion. |
Electro-fin (E-coating) | Coastal regions, heavy industrial zones. | Excellent uniform coverage, negligible impact on heat transfer, higher initial expense. |
Phenolic Coatings | Chemical processing, acidic environments. | Superior chemical resistance, can slightly reduce thermal efficiency, thick application. |
Copper-Copper Construction | Marine applications, extreme longevity needs. | Eliminates galvanic corrosion between tube and fin, very heavy, highest material expense. |
Procurement strategies fall into two distinct solution categories. You can order a direct OEM part number. This guarantees original specifications but relies on the manufacturer still producing the part. Alternatively, you can reverse-engineer a coil for custom fabrication. This approach requires precise field measurements but offers flexibility in design and material upgrades. A technician must carefully measure the existing coil, noting any physical constraints in the installation space. Sometimes, the original coil was installed before other equipment blocked access. The custom replacement might need to be built in sections or with modified header locations to allow for installation.
Knowing when to specify a custom condenser coil saves time and money. Obsolete OEM equipment often forces a custom approach. When manufacturers discontinue a product line, exact replacements disappear. Repeated premature failures of standard coils also justify custom engineering. If a standard coil rots out every three years due to environmental factors, a custom build with upgraded materials stops the cycle. Retrofitting systems for higher ambient temperature zones is another prime use case. A custom design can pack more heat transfer surface area into the same physical footprint.
Overall value influencing factors go beyond the initial purchase. Compare upfront expenses and lead times carefully. Custom coils may have longer initial fabrication times. However, they eliminate the need for costly system-wide replacements. They prevent extensive piping modifications required to force an incompatible off-the-shelf coil into an existing space. The long-term reliability often outweighs the initial wait.
Selection tools have evolved significantly. Engineers previously relied on manual reference tables and complex formulas. The industry has transitioned to robust web-based coil selection software. These platforms allow engineers to generate preliminary performance data instantly. You can calculate precise pressure drops based on specific operating conditions. The software produces accurate CAD drawings for custom builds prior to procurement. This digital workflow eliminates guesswork. It ensures the fabricated product meets exact thermodynamic requirements.
Refrigerant compliance introduces strict mechanical requirements. The industry is shifting toward high-pressure refrigerants to meet environmental regulations. Carbon dioxide (R-744) systems operate at significantly higher pressures than traditional hydrofluorocarbons. Transcritical CO2 applications demand robust coil construction. You must specify thicker tube walls to handle the extreme internal forces. The coil must carry higher burst pressure certifications. Failing to match the coil's pressure rating to the refrigerant type guarantees catastrophic rupture and severe safety hazards.
Maintenance realities dictate long-term performance. Evaluate the coil's accessibility for preventative maintenance before installation. Technicians need clearance to pressure-wash fins and inspect connections. A coil crammed into a tight space will not receive proper cleaning. Dirt accumulation ruins heat transfer efficiency rapidly. Compressors generate significant vibration. This vibration travels through the discharge line to the condenser coil. If the coil is not properly supported, or if the tube sheets are too thin, this vibration will cause fatigue cracks in the copper tubes.
Defrost realities require environmental matching. Mitigate risks of ice build-up or debris fouling by matching fin spacing to the specific operational environment. Tight fin spacing in a dusty environment guarantees rapid clogging. Evaluate the defrost mechanisms. Hot gas defrost or electric heaters must integrate seamlessly with the coil design. Proper drainage paths within the casing prevent melted ice from refreezing and crushing the lower tubes. Condenser coils experience significant temperature swings. The tubes expand and contract. The casing must allow for this movement without putting stress on the brazed joints. Address these physical realities during the specification phase to ensure reliable operation.
Choosing the right heat rejection component requires balancing thermodynamic capacity, physical dimensions, and environmental resilience. You must prioritize long-term reliability over the lowest initial purchase expense. A cheap coil that fails prematurely costs exponentially more in downtime and lost product.
Audit your current coil's failure mode to inform your next steps. Identify whether the unit failed due to galvanic corrosion, vibration-induced pressure leaks, or simple debris fouling. Use this failure data to select material and design upgrades for the replacement unit.
To move forward with your replacement project, follow these steps:
Document the exact failure mode of your existing coil to determine necessary material upgrades.
Measure the finned area, overall dimensions, and header locations using a standardized blank drawing template.
Verify your system's required Total Heat of Rejection and operating pressures based on the current refrigerant.
Submit a detailed Request for Quote to a specialized manufacturer, including your dimensional drawings and environmental conditions.
A: A commercial condenser coil typically lasts 10 to 15 years under normal conditions. Lifespan depends heavily on environmental factors, maintenance frequency, and material quality. Coastal areas or industrial sites with corrosive air can reduce this lifespan to under five years without protective coatings. Regular cleaning and prompt repair of minor leaks significantly extend operational life.
A: Use a blank drawing template to ensure accuracy. Measure the finned area height and length first. Determine the overall dimensions including the casing. Count the rows deep. Measure the exact tube outside diameter. Finally, map the precise locations of the supply and return headers relative to the casing edges.
A: You must provide exact physical dimensions and header locations. Specify the required Cubic Feet per Minute of airflow. List the refrigerant type and operating pressures. State the target capacity in BTU/hr. Finally, detail the environmental conditions to ensure the manufacturer applies the correct anti-corrosion coatings and fin density.
A: Condenser coils typically do not freeze; evaporator coils do. However, if a condenser is freezing, it usually indicates a severe system imbalance in a reversible heat pump operating in heating mode. This is caused by poor airflow, dirty fins, low refrigerant charge, or a failing defrost cycle preventing ice removal.
A: Yes. Custom engineering can optimize tube circuitry and fin design for your specific environment. Increasing the surface area or altering the fin profile lowers condensing temperatures. This reduces the compressor's workload, decreases amp draw, and improves the overall energy efficiency of the refrigeration cycle.
A: Copper offers superior heat transfer rates and is easily repaired in the field using standard brazing. Aluminum is significantly lighter and costs less, but field repairs are difficult. Mixing copper tubes with aluminum fins can lead to galvanic corrosion in wet environments unless properly coated.
A: Higher Fins Per Inch (14-20 FPI) maximizes surface area for heat rejection, increasing efficiency in clean environments. Lower FPI (8-12) reduces surface area but prevents rapid fouling in dusty or debris-heavy areas. You must balance heat transfer needs with the reality of airflow restriction and maintenance frequency.
