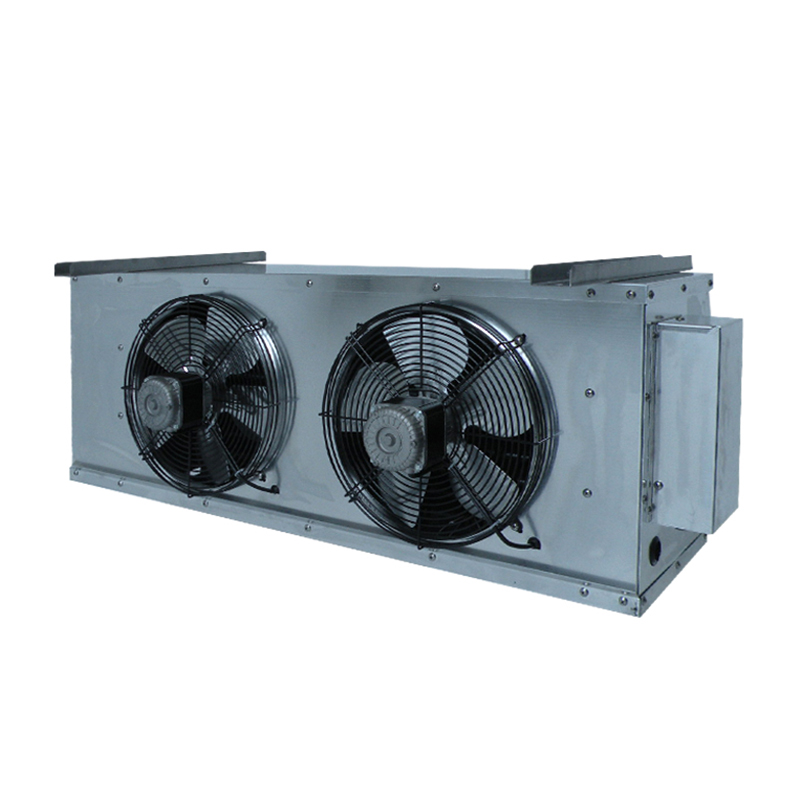

Improper coil specification in commercial refrigeration destroys equipment and ruins inventory. A mismatched coil forces compressors to run continuously, wastes massive amounts of electrical energy, and leads directly to catastrophic product loss. Walk-in freezers and commercial chillers depend entirely on precise heat transfer. When the coil fails to handle the specific thermal load or environmental conditions, the entire refrigeration cycle collapses.
Facility managers and field engineers face strict operational demands. You must match the required thermal capacity, harsh ambient conditions, and modern refrigerant regulations to the exact coil geometry and materials. A single miscalculation in fin spacing or tube diameter compromises system stability. Guesswork has no place in sizing these components.
This guide provides a strict technical evaluation framework for assessing standard and custom configurations. You will learn how to ensure optimal heat transfer, maintain regulatory compliance, and maximize system longevity through proper specification. Proper selection requires analyzing fluid dynamics, material science, and airflow mechanics.
Material Selection Dictates Lifespan: Operating environments (e.g., acidic food storage, coastal air) require specific tube materials and anti-corrosive coatings to prevent premature failure.
Fin Spacing Controls Defrost Efficiency: Sub-freezing applications demand wider fin spacing to manage frost accumulation and minimize energy-intensive defrost cycles.
Refrigerant Transitions Require Coil Upgrades: Shifting to low-GWP refrigerants (like CO2 or A2Ls) necessitates coils engineered for higher operating pressures and specific thermodynamic properties.
Customization Drives Total ROI: While standard OEM replacements are faster to source, a custom cooling coil often resolves legacy spatial constraints and improves long-term energy efficiency.
Fluid Type Determines Architecture: Direct Expansion (DX) coils require fundamentally different circuiting and distributor designs compared to chilled water or glycol fluid coils.
Cooling performance relies on specific baseline metrics. You must first establish the required temperature delta (TD). This measures the difference between the entering air temperature and the evaporating refrigerant temperature. A floral cooler requires a low TD, typically around 10°F, to maintain high humidity and prevent delicate inventory from drying out. A meat freezer utilizes a higher TD to pull down temperatures rapidly, as moisture retention in sealed packaging poses less of a concern.
Next, determine the sensible heat ratio (SHR). This ratio dictates how much energy goes toward lowering the temperature versus removing moisture from the air. A high SHR means the system focuses primarily on dropping the temperature. A lower SHR indicates the system works heavily to dehumidify the space. Finally, calculate the total thermal load in BTU/hr to size the equipment accurately based on peak summer ambient conditions and maximum product loading.
Medium-temperature chillers operate above freezing. Their primary challenge involves condensation management. The coil must effectively drain water as it pulls humidity from the air. Low-temperature walk-in freezers operate below freezing. Frost management becomes the primary operational demand. Any moisture extracted from the air turns immediately to ice on the coil surfaces.
Coil surface area directly impacts airflow velocity and compressor efficiency. A larger surface area allows for a lower TD. This higher suction pressure reduces the mechanical lift required by the compressor. Consequently, the compressor draws less amperage and lasts longer. Insufficient surface area forces the compressor to work harder, degrading overall system efficiency and leading to premature mechanical failure.
Direct Expansion (DX) coils utilize phase change refrigeration. Liquid refrigerant enters the coil through an expansion valve. As it absorbs heat from the air, it boils and transforms into a gas. This phase change absorbs massive amounts of thermal energy quickly. DX systems require complex distributor tubes to ensure equal refrigerant flow across all circuits. If one circuit receives more liquid than another, the coil suffers from uneven temperature distribution and potential liquid flood-back to the compressor.
Fluid coils operate differently. They provide sensible cooling using chilled water or propylene/ethylene glycol mixtures. No phase change occurs. The fluid simply enters cold, absorbs heat, and exits warmer. You must carefully manage the internal fluid velocity to maintain turbulent flow. Turbulent flow maximizes heat transfer against the tube walls. If the fluid moves too slowly, it enters a laminar flow state, which drastically reduces the heat transfer coefficient.
Glycol systems introduce unique challenges. Freeze-point depressants increase fluid viscosity. Thicker fluids move slower and require more pump energy. This increased viscosity significantly impacts the internal pressure drop. You must design the cooling coil with appropriate header sizes and circuit lengths to counteract this resistance. Failure to account for glycol viscosity results in poor heat transfer coefficients and inadequate cooling.
System Type | Cooling Mechanism | Flow Control Component | Primary Design Challenge |
|---|---|---|---|
Direct Expansion (DX) | Phase change (Liquid to Gas) | Thermal Expansion Valve (TXV) | Ensuring equal refrigerant distribution and proper oil return. |
Chilled Water | Sensible heat transfer | Modulating Control Valve | Maintaining turbulent flow without exceeding pressure drop limits. |
Glycol Mixture | Sensible heat transfer | Modulating Control Valve | Overcoming high fluid viscosity at sub-freezing temperatures. |

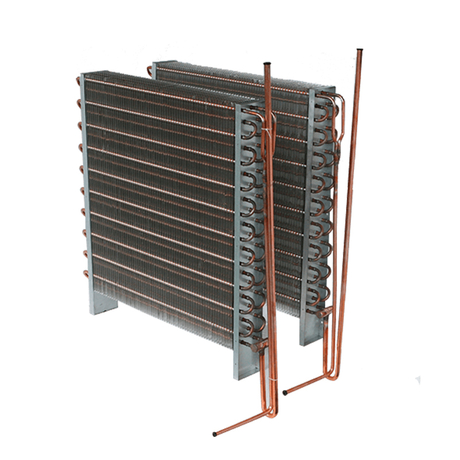

Standard construction typically utilizes copper tubes and aluminum fins. This combination offers excellent thermal conductivity and remains lightweight. Harsh environments demand alternative materials. All-aluminum coils eliminate galvanic corrosion risks between dissimilar metals. Cupronickel provides superior resistance to marine environments and brackish water exposure. Stainless steel offers maximum durability against aggressive industrial chemicals, though it sacrifices some thermal conductivity compared to copper.
Protective coatings extend equipment life in corrosive atmospheres. Off-gassing from stored produce, such as onions or citrus, creates highly acidic environments that eat through bare copper in months. Coastal salinity rapidly degrades bare aluminum fins, turning them into white powder. You must evaluate specific coating technologies based on the application:
Electro-fin coating: Dips the entire coil in an electro-deposition bath for complete, uniform coverage across every fin edge and tube joint.
Phenolic coating: Provides heavy-duty resistance against highly acidic or alkaline conditions, often used in wastewater treatment or chemical storage.
Epoxy spray: Offers a localized, field-applicable defense for moderate exposure, though it rarely penetrates deep into dense fin packs.
You must balance thermal conductivity against material weight and long-term durability. Thicker tube walls and heavy coatings slightly reduce heat transfer efficiency. You must account for this thermal derating during the initial load calculations to ensure the final unit meets the required capacity.
Fins Per Inch (FPI) dictates system performance and maintenance intervals. Freezers require 4 to 6 FPI. This wide spacing accommodates frost buildup between defrost cycles without blocking airflow. Medium-temperature chillers can utilize 8 to 14 FPI. The tighter spacing maximizes surface area in environments where frost is not a primary concern, allowing for a physically smaller coil footprint.
Tube diameter directly affects internal fluid dynamics. A standard fin and tube heat exchanger typically uses 3/8", 1/2", or 5/8" tubes. Smaller 3/8" tubes increase internal velocity. High velocity ensures proper oil return to the compressor in DX systems, pushing the oil up vertical suction risers. Larger 5/8" tubes reduce refrigerant pressure drop, making them ideal for long circuit runs or high-viscosity fluid applications where pump head pressure is a concern.
Fin profiles balance heat transfer enhancement against air-side pressure drop. Flat fins offer the lowest air resistance and are easiest to clean, making them ideal for dusty environments. Corrugated fins create air turbulence, improving heat transfer while slightly increasing pressure drop. Louvered fins provide the highest thermal performance by slicing the boundary layer of air, but they trap dirt easily. Avoid louvered fins in heavy frost applications or commercial kitchens with airborne grease.
Proper circuiting controls capacity and part-load efficiency. Multi-compressor systems require specific circuiting strategies to match variable loads. Interlaced circuiting feeds alternate tubes, keeping the entire coil face active even at 50% capacity. This prevents hot spots and maintains uniform dehumidification. Face-split circuiting divides the coil horizontally, activating the bottom half first. Row-split circuiting divides the coil by depth, often used for precise humidity control in specialized manufacturing environments.
Header sizing prevents fluid bottlenecks. An undersized header creates excessive pressure drop. It starves the furthest circuits of refrigerant or fluid. You must size headers to ensure even distribution across every active circuit. This maintains uniform temperature across the coil face and prevents localized freezing in water coils.
Connection configurations must integrate seamlessly with existing piping. You can specify same-end or opposite-end connections based on physical space constraints inside the air handler. Fitting types vary by application. Sweat connections provide permanent, leak-free joints for high-pressure refrigerants. Flanged or threaded connections allow for easier removal and maintenance in chilled water or glycol systems.
High-pressure natural refrigerants demand robust structural integrity. R-744 (CO2) operates at pressures significantly higher than traditional HFCs, often exceeding 1000 psi in transcritical applications. CO2 coils require thicker tube walls, specialized brazing techniques, and high-pressure headers. Standard HFC coils will rupture violently under CO2 operating pressures.
Material incompatibilities pose severe safety risks. You must never use copper or brass in ammonia (R-717) systems. Ammonia rapidly corrodes copper alloys, leading to catastrophic leaks and toxic exposure. Ammonia systems strictly require stainless steel, aluminum, or carbon steel construction.
Newer refrigerant blends introduce temperature glide. R-448A and R-449A evaporate over a range of temperatures rather than a single point. This glide affects coil circuiting design and frost formation patterns. You must select thermal expansion valves (TXVs) specifically calibrated for the chosen refrigerant's glide profile to prevent liquid flood-back to the compressor during low-load conditions.
AHRI certification verifies thermal performance. It guarantees the coil delivers the stated BTU/hr capacity and energy efficiency ratings under standardized testing conditions. Relying on uncertified coils risks underperformance, higher utility bills, and failed health inspections due to inadequate temperature control.
Safety and sanitation standards protect end-users. UL listing ensures all integrated electrical components, such as defrost heaters and fan motors, meet strict fire and electrical safety codes. NSF compliance is mandatory for coils installed in direct food-splash zones. NSF-certified designs eliminate crevices where bacteria can hide and mandate specific cleanable materials.
Large, high-pressure applications often fall under ASME pressure vessel codes. Custom configurations operating above specific pressure thresholds must carry an ASME stamp. This ensures the pressure boundary materials, wall thicknesses, and welding procedures meet rigorous engineering standards to prevent explosive decompression.
Engineered-to-order solutions solve complex field problems. Retrofitting obsolete equipment often requires a custom cooling coil. Standard catalog sizes rarely fit legacy casings. Unique dimensional constraints, such as low ceilings, narrow access doors, or structural columns, demand tailored geometries that OEM catalogs cannot provide.
Capacity upgrades frequently require custom engineering. You may need to increase BTU output without altering the physical footprint of the air handler. This requires optimizing fin density, tube diameter, and circuiting within the existing dimensions. A custom design can squeeze 20% more capacity out of the same physical space by altering the internal tube geometry.
Reverse-engineering duplicates or improves existing performance. Engineers measure the exact casing dimensions, mounting hole alignments, and header locations. They analyze the failed coil to identify design flaws, such as poor oil return or inadequate fin spacing. The replacement unit matches the physical fit perfectly while upgrading materials or circuiting to prevent future failures.
Custom manufacturing requires higher upfront capital expenditure. You must compare this against the hidden costs of modifying a standard coil. Forcing a standard coil into a non-standard space requires sheet metal fabrication, piping alterations, and extended labor hours. These field modifications often exceed the premium paid for a custom-fit unit and introduce new points of failure.
Custom circuiting delivers long-term operational efficiency. By matching the exact thermal load and fluid dynamics, the compressor runs less frequently. Reduced run times lower utility bills and extend mechanical lifespan. The energy savings from a properly circuited coil often pay for the custom engineering premium within the first two years of operation.
Emergency replacements demand rapid deployment. Catastrophic failures risk massive product loss in commercial food processing or pharmaceutical storage. Many custom manufacturers offer expedited programs. They can engineer and build a replacement in 24 to 48 hours. The premium for expedited manufacturing mitigates the far greater financial loss of ruined inventory and facility downtime.
Sub-freezing environments guarantee frost formation. You must integrate reliable defrost mechanisms to maintain airflow and heat transfer. Air defrost works only for coolers operating above 36°F, using ambient air to melt light frost. Electric resistance defrost uses heater tubes inserted directly into the coil block, providing intense, localized heat. Hot gas defrost redirects high-temperature discharge gas from the compressor back through the evaporator, melting ice rapidly from the inside out.
Coil design dictates defrost efficiency. Heater tubes must distribute heat evenly across the fin pack to prevent cold spots where ice survives the cycle. The drain pan requires its own heating element to prevent meltwater from refreezing before it exits the unit. Heated drain lines ensure water exits the freezer box completely without creating ice blockages in the piping.
Incomplete defrosting creates cascading failures. Ice bridging occurs when frost connects between fins. This blocks airflow entirely. Without airflow, the coil cannot absorb heat. Liquid refrigerant then floods back to the compressor, washing oil out of the crankcase and causing mechanical destruction. Severe ice expansion can also crush copper tubes, leading to massive refrigerant leaks and complete system failure.
Airflow relies on a critical balance. The coil's air-side pressure drop must match the evaporator fan's static pressure capabilities. Dense fin packs create high resistance. The fan must generate enough force to push air through the entire depth of the coil. If you specify a 6-row coil with 12 FPI, a standard axial fan will likely stall, resulting in zero airflow.
Mismatched fans and coils cause severe performance drops. Weak fans result in air bypass. Air takes the path of least resistance, flowing around the coil casing rather than through the fin pack. This causes uneven frost distribution and drastically reduces heat transfer capacity. Oversized fans waste electrical energy, generate excessive noise, and can pull moisture off the drain pan, blowing water directly onto stored products.
Sizing errors cripple refrigeration systems. Undersizing and oversizing both introduce distinct operational hazards. You must calculate loads precisely to avoid these extremes. Relying on rules of thumb rather than engineered load calculations guarantees poor performance.
Failure Mode | Operational Symptoms | System Impact |
|---|---|---|
Undersizing | Inability to pull down temperature, high box temperatures. | Compressor short-cycling, continuous run times, premature mechanical failure. |
Oversizing | Rapid temperature drop, poor humidity control. | Excessive refrigerant charge required, oil logging in the evaporator, clammy environment. |
Improper Circuiting | Uneven frost patterns, warm spots on the coil face. | Loss of capacity, erratic TXV hunting, potential liquid flood-back. |
Installation hazards compromise even perfectly sized coils. Galvanic corrosion occurs when installers use improper mounting hardware. Steel bolts on an aluminum casing create a battery effect in damp environments, eating away the metal rapidly. Inadequate trapping in suction lines prevents oil from returning to the compressor, leading to seized bearings. Failure to properly pitch the drain pan leaves standing water, leading to ice blocks, biological growth, and foul odors.
Routine inspection requires physical accessibility. Specify hinged fan panels or slide-out coil designs during the engineering phase. Technicians will not clean what they cannot easily reach. Blocked coils consume excess energy, harbor bacteria, and eventually cause compressor failure due to high head pressures.
Safe cleaning protocols protect the equipment. High-pressure washers flatten fins, destroying airflow permanently. Highly acidic or alkaline cleaners strip protective coatings and introduce corrosive chemicals into the food zone. Follow this strict cleaning protocol:
Disconnect all power to the evaporator fans and defrost heaters.
Remove heavy surface debris using a soft-bristle brush, brushing parallel to the fins to avoid bending them.
Apply a pH-neutral, foaming coil cleaner using a low-pressure sprayer, allowing it to penetrate the fin pack for 10 minutes.
Rinse the unit thoroughly with low-pressure water, ensuring all chemical residue washes down the drain pan.
Inspect the drain pan and clear the drain line using compressed air or a flexible snake to ensure proper flow.
Selecting the correct coil requires balancing thermodynamics, environmental resilience, and system compatibility. You must prioritize long-term operational efficiency over initial acquisition expense. A properly specified unit protects your compressor, reduces energy consumption, and safeguards your product inventory from catastrophic temperature fluctuations.
Take the following actions before finalizing your equipment specification:
Run performance modeling software based on your exact ambient conditions and peak product loads.
Verify all physical casing dimensions, header locations, and mounting points against the existing installation space.
Confirm the selected refrigerant's operating pressures and glide characteristics match the coil's pressure ratings and TXV selection.
Audit the storage environment for acidic off-gassing or salinity to determine the necessary protective coating.
A: Walk-in freezers typically require 4 to 6 Fins Per Inch (FPI). This wider spacing allows frost to accumulate between defrost cycles without immediately blocking airflow. Tighter fin spacing in sub-freezing environments leads to rapid ice bridging, restricted airflow, and frequent, energy-wasting defrost cycles.
A: Sizing requires calculating the total thermal load (BTU/hr), determining the required temperature delta (TD), and establishing the sensible heat ratio (SHR). You must also measure the exact physical dimensions of the existing casing and match the air-side pressure drop to the existing fan's static pressure capabilities.
A: A DX (Direct Expansion) coil uses liquid refrigerant that boils and changes into a gas as it absorbs heat. A chilled water coil uses fluid that remains liquid, absorbing heat sensibly. DX coils require complex distributor tubes, while water coils rely on specific header designs to manage fluid velocity.
A: No. Ammonia (R-717) is highly corrosive to copper and brass. Using standard copper coils in an ammonia system will cause rapid material degradation and catastrophic leaks. Ammonia systems strictly require coils constructed from stainless steel, aluminum, or carbon steel.
A: CO2 (R-744) operates at significantly higher pressures than traditional HFC refrigerants. Transitioning to CO2 requires coils engineered with thicker tube walls, high-pressure headers, and specialized brazing techniques to withstand the extreme operating pressures without rupturing.
A: Continuous freezing usually stems from poor airflow, a failed defrost timer, burnt-out defrost heaters, or a low refrigerant charge. If the evaporator fans fail or the fin pack becomes clogged with dirt, the coil cannot absorb heat, causing the surface temperature to drop and ice to form rapidly.
