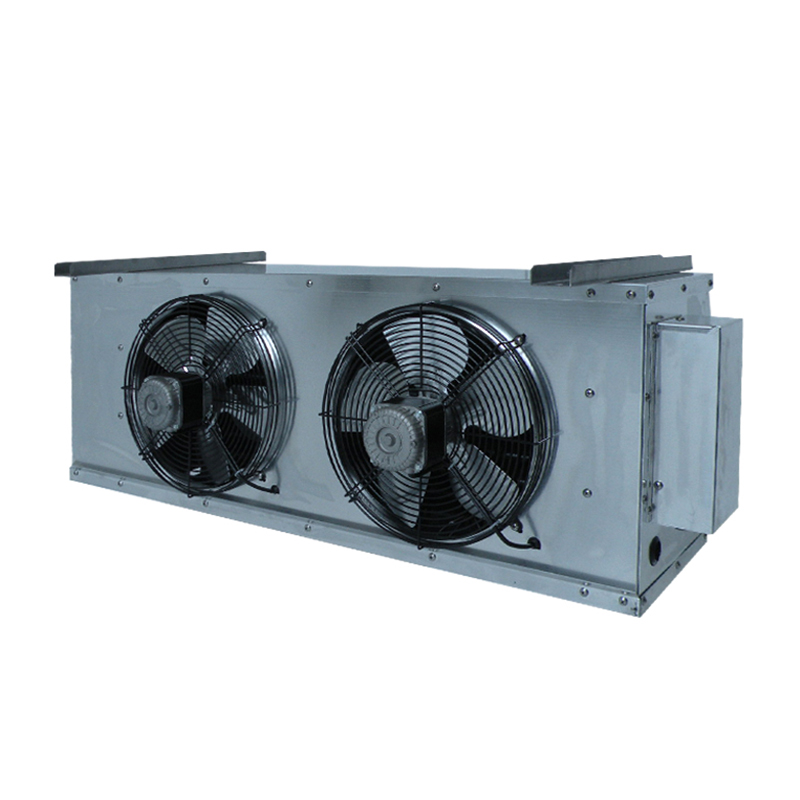

Procuring a custom HVAC coil—whether for a critical system replacement or a new equipment design—requires exact engineering specifications, not just rough dimensions. Incomplete or inaccurate specifications submitted to manufacturers result in extended lead times, improper fitment, mismatched heat transfer rates, and premature system failure. To ensure a seamless procurement process and guaranteed performance, engineers and facility managers must provide manufacturers with a comprehensive dataset. This dataset must cover physical dimensions, internal geometry, operational parameters, and logistical requirements. Guessing on connection sizes or airflow rates leads to equipment that simply will not work on site. This guide details the exact information required to successfully specify and order a custom unit. We will walk through the exact measurements, material selections, and performance metrics you need to gather before contacting a manufacturer.
Dimensional Accuracy is Non-Negotiable: Distinguishing between finned area and overall dimensions is critical to ensure the coil fits the existing air handler or rooftop unit housing.
Performance Relies on Geometry: Tube diameter, wall thickness, and Fins Per Inch (FPI) dictate both the heat transfer capacity and the air/fluid pressure drops.
Operating Conditions Dictate Materials: Accurate data on refrigerants, fluid temperatures, and environmental exposure is required to select the right tube materials and anti-corrosive coatings.
Standardized Data Accelerates Lead Times: Providing a complete specification sheet upfront eliminates back-and-forth during the initial design and engineering phase, moving the project into production faster.
Defining success for a custom order starts with strict physical and thermal criteria. The unit must slide into the existing rack without field modifications. It must meet or exceed the original BTU/hr capacity. It must align perfectly with existing supply and return piping. Achieving these goals requires accurate field data and clear communication with the engineering team. When a contractor rents a crane to lift a replacement unit onto a commercial roof, discovering the unit is one inch too long halts the entire project. Precision eliminates these catastrophic delays.
Ambiguity carries heavy operational costs. Under-specifying creates severe risks for the entire mechanical system. Improper pressure drops increase compressor wear and reduce overall efficiency. Mismatched materials cause galvanic corrosion, leading to premature leaks and refrigerant loss. You cannot rely on guesswork when facility uptime is on the line. Every dimension and performance metric must be verified against the actual operating conditions of the building.
Manufacturers rely heavily on your precise initial inputs. They use this data to engineer a unit that meets specific thermal and spatial requirements. This engineering phase happens long before any metal is cut or tubes are bent. Accurate data prevents redesigns, eliminates back-and-forth emails, and keeps the project on schedule. The manufacturer's thermal modeling software is only as good as the data you provide.
Replacing an existing degraded unit requires careful reverse-engineering. You must measure the old unit accurately despite physical damage, bent fins, or bulging tube sheets. Conversely, designing a unit for new equipment requires forward-engineering. This process relies on precise load calculations, target efficiencies, and spatial constraints within the new cabinet. Both scenarios demand a rigorous approach to data collection.
You must distinguish between the finned area and the overall dimensions. The finned area represents the active heat transfer zone. It includes only the finned height and finned length. The overall footprint includes the casing, headers, return bends, and any protruding connections. Confusing these two measurements guarantees the unit will not fit into the existing air handler.
For example, a unit might have a 48-inch finned length. However, once you add the headers and return bends, the overall length reaches 54 inches. If you submit 48 inches as the overall length, the manufacturer builds a significantly smaller unit. This leaves a massive gap in the air handler, allowing unconditioned air to bypass the heat transfer surface entirely.
Sheet metal and casing dimensions require standard tolerances. Manufacturers typically work within a 1/8-inch to 1/4-inch tolerance for overall casing dimensions. Specify if tighter tolerances are required for your specific mounting tracks or slide-in racks. Always measure the casing depth accurately, as adding rows to increase capacity will increase the overall depth of the unit.
Casing materials depend on weight constraints, structural requirements, and environmental moisture levels. Selecting the wrong casing material leads to rapid rusting and structural failure. You must evaluate the operating environment before specifying the sheet metal.
Galvanized Steel: Serves as the industry standard for most indoor applications. It offers a good balance of strength and cost. Typically specified in 16-gauge for standard units and 14-gauge for heavy-duty applications.
Stainless Steel (304 or 316): Resists harsh environments, frequent washdowns, and high condensation areas. Mandatory for hospital-grade air handlers, food processing facilities, and coastal applications.
Aluminum: Saves significant weight for suspended units or rooftop applications. It resists corrosion well but lacks the structural rigidity of steel for very large assemblies.
Flange types and mounting orientations ensure secure installation. Specify whether you need standard formed flanges, slip-and-drive connections, or heavy-duty structural frames. Note the exact mounting orientation to ensure the drain pans align correctly with the airflow. Horizontal airflow requires different casing designs than vertical airflow.

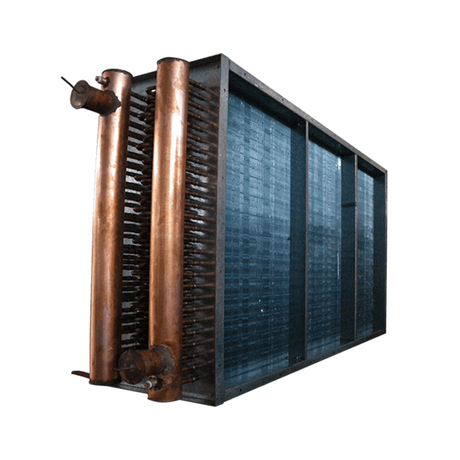

Connections dictate how easily the unit integrates into the existing piping network. Specify the header materials, usually copper or carbon steel. Detail the required connection types. Common options include Male Pipe Thread (MPT), Female Pipe Thread (FPT), sweat/brazed, or grooved connections. Match the connection type to your facility's piping standards to avoid unnecessary field adapters.
Document connection locations relative to the airflow direction. Note if connections sit on the same end or opposite ends of the unit. Specify top or bottom orientation for the supply and return lines. Incorrect connection placement forces contractors to reroute expensive copper piping on site, adding days to the installation timeline.
Tube outside diameter (OD) and wall thickness are foundational engineering inputs. Common tube diameters include 3/8-inch, 1/2-inch, and 5/8-inch. Smaller diameters work well for compact direct expansion systems. Larger 5/8-inch tubes dominate heavy commercial water and steam applications due to their lower fluid pressure drop.
Wall thickness ranges from 0.016 inches for standard applications up to 0.035 inches for high-pressure systems. Thicker walls increase longevity and resist erosion, but they slightly reduce heat transfer rates. Standard chilled water systems typically use 0.020-inch copper walls. High-pressure steam requires 0.035-inch walls to handle thermal expansion and contraction safely.
Material selection depends heavily on fluid type and operating pressure. Smooth copper works for standard water and refrigerant applications. Rifled copper increases internal turbulence to boost heat transfer in direct expansion systems. Cupronickel or stainless steel tubes handle aggressive fluids, high-pressure steam, or highly corrosive industrial environments.
Fins Per Inch (FPI) balances heat transfer efficiency against air pressure drop. High FPI (12 to 14) increases the surface area for heat transfer, allowing for a smaller overall footprint. However, it also raises the air pressure drop and increases fouling risks. Dirty environments require lower FPI (8 to 10) to allow for proper pressure washing and prevent rapid clogging.
Compare aluminum and copper fins based on your thermal requirements. Aluminum is standard due to its excellent cost-to-performance ratio and lighter weight. Copper fins maximize heat transfer and resist certain corrosive environments, but they add significant weight and material cost. You must ensure the existing structural supports can handle the added weight of a copper-fin unit.
Fin Profile Type | Airflow Characteristics | Best Application |
|---|---|---|
Flat | Lowest air resistance, easy to clean. | Dirty environments, industrial exhaust, low-static fans. |
Corrugated | Moderate turbulence, good heat transfer. | Standard commercial air handlers, chilled water systems. |
Sine Wave | High turbulence, excellent heat transfer. | Compact spaces requiring high BTU output. |
Louvered | Maximum turbulence, highest air resistance. | Clean environments, high-efficiency direct expansion. |
Specify the number of rows deep in the direction of airflow. More rows increase the cooling or heating capacity. However, adding rows also increases the airside pressure drop. You must ensure the existing supply fan can overcome the added resistance of a deeper unit. Going from a 4-row to a 6-row design might require a fan motor upgrade.
Circuiting maintains optimal fluid velocity and pressure drop. Specify full, half, or quarter circuiting based on the fluid flow rate. Proper circuiting keeps fluid velocity between 2 and 6 feet per second. This prevents excessive pressure drop and ensures even fluid distribution. This is particularly critical when designing condenser and evaporator coils to prevent refrigerant oil trapping at low loads.
Specify the exact fluid medium running through the tubes. Options include chilled water, hot water, low-pressure steam, or specific glycol mixtures. If using glycol, specify the exact percentage (e.g., 30% Propylene Glycol) because glycol reduces heat transfer efficiency and increases fluid pressure drop compared to pure water.
If using refrigerants, specify the exact type, such as R-410A, R-32, or R-134a. The fluid type dictates the required tube materials, header designs, and pressure ratings. Evaporators and condensers handle phase changes from liquid to gas or gas to liquid. The internal volume must accommodate these expansion and contraction rates safely without exceeding burst pressure limits.
Provide accurate airflow rates using Standard Cubic Feet per Minute (SCFM) or Actual CFM (ACFM). Accurate airflow data allows the manufacturer to calculate the airside heat transfer coefficient. Guessing the CFM leads to severely over-sized or under-sized equipment. A common rule of thumb is 400 CFM per ton of cooling, but actual measured field data is always superior.
Discuss maximum allowable airside and fluid-side pressure drops. Existing fans and pumps have specific performance curves. The new unit must operate within these established limits. Exceeding the allowable pressure drop causes reduced airflow, pump cavitation, or fan motor failure. Always specify a maximum airside pressure drop, such as "not to exceed 1.0 inches water gauge."
Outline the required temperature differentials for the airside. Provide the Entering Air Temperature (EAT) and Leaving Air Temperature (LAT). For cooling applications, you must provide both dry bulb and wet bulb temperatures. Wet bulb data calculates the latent cooling load required for dehumidification. Without wet bulb data, the manufacturer cannot guarantee the unit will remove enough moisture from the air.
Outline the fluid temperatures as well. Provide the Entering Fluid Temperature (EFT) and Leaving Fluid Temperature (LFT). The difference between the entering and leaving temperatures determines the required flow rate and overall thermal performance of the unit. A standard chilled water system might use a 45°F EFT and a 55°F LFT.
Manufacturers use specific variables to verify the required Total and Sensible BTU/hr capacity. They run this data through proprietary modeling software. This ensures the physical design meets the thermal requirements under peak load conditions. Providing incomplete data forces the engineer to make assumptions, which degrades the accuracy of the final build.
Critical data points are needed for accurate modeling. You must provide the required cooling capacity and compressor power input. Refrigerant mass flow rate and design condensing temperature are also necessary for direct expansion systems. The more data you provide upfront, the faster the engineering team can generate an accurate submittal drawing.
Performance Variable | Data Required | Impact on Engineering Design |
|---|---|---|
Airflow | SCFM or ACFM | Determines fin design, FPI, and overall face area. |
Air Temperatures | EAT / LAT (Dry & Wet Bulb) | Calculates sensible and latent heat transfer requirements. |
Fluid Temperatures | EFT / LFT | Dictates circuiting configuration and required fluid velocity. |
Pressure Drop Limits | Max Air / Fluid Resistance | Restricts the number of rows and tube diameter selections. |
Selecting materials requires a strict decision framework. You must balance upfront costs against the expected lifecycle of the equipment. Standard materials like copper tubes and aluminum fins work perfectly for controlled indoor environments. They offer the best return on investment for standard commercial facilities and office buildings.
When designing OEM and ODM refrigeration equipment for harsh environments, premium alloys become necessary. Heavy-wall copper or cupronickel extends the lifespan in industrial applications. While these materials increase the initial purchase price, they prevent premature failures. Evaluate your budget constraints alongside the cost of unplanned facility downtime. A cheaper unit that fails in two years costs far more than a premium unit that lasts twenty years.
Evaluate environmental risks before finalizing the order. Coastal salt air destroys standard aluminum fins rapidly through galvanic corrosion. Industrial chemicals, airborne solvents, and wastewater facilities accelerate metal degradation. You must identify these airborne contaminants during the site survey to select the proper protective measures.
Compare available coating solutions based on the specific threat. E-coating provides a uniform, thin layer of protection that dips the entire unit, ensuring 100% coverage with minimal impact on thermal resistance. Epoxy phenolic coatings offer heavy-duty protection for highly corrosive industrial sites. Polyurethane coatings resist UV degradation for outdoor rooftop units. Understand how each coating impacts thermal performance, as heavy coatings can reduce heat transfer efficiency by up to 5%.
Measurement errors ruin replacement projects. Measuring a deformed, frozen, or bulging old unit leads to an oversized replacement. If the new unit is even half an inch too wide, it will not slide into the existing rack. This forces costly field modifications, cutting into sheet metal, and extending the installation time by days.
Mitigate this risk by measuring from rigid, undeformed points. Always measure the tube sheets and the rigid casing edges, never the bent fins. Utilize manufacturer-provided blank measurement templates. These templates force you to record every necessary dimension, ensuring nothing is overlooked during the site survey. Take photos of the existing unit, including the header connections, to send alongside your measurement sheet.
Supply chain realities affect project schedules directly. Specialized material shortages cause significant project delays. Heavy-wall cupronickel or specific stainless steel grades often carry extended lead times. You cannot assume all materials are readily available on the factory floor at a moment's notice.
Identify standard versus non-standard materials early in the engineering phase. If a specialized material delays the project past your facility downtime schedule, ask the manufacturer for alternatives. Sometimes, a standard material with a heavy-duty e-coating offers a faster, equally durable solution. Plan your procurement cycle to account for 4 to 6 weeks of manufacturing time.
Packaging and shipping pose severe risks to the equipment. Delicate fins and copper tubes can be crushed easily during transit. A unit that leaves the factory in perfect condition can arrive completely unusable if handled improperly by freight carriers or forklift operators.
Specify custom crating and reinforced packaging protocols. Demand fully enclosed wooden crates for large units, not just cardboard and shrink wrap. Coordinate exact delivery times with the freight carrier. Ensure your facility has the proper forklifts, rigging equipment, and personnel ready for safe offloading upon arrival. Inspect the crate for damage before signing the delivery receipt.
Do not overlook required certifications and testing standards. Specify required certifications like AHRI, UL, ASME, or ISO standards upfront. These certifications ensure the equipment meets strict performance and safety regulations required by local building codes and inspectors.
Demand rigorous factory pressure-testing standards before shipment. Submerged nitrogen testing is the industry standard for detecting micro-leaks. The unit is pressurized with nitrogen and submerged in a water tank to check for bubbles. Request the factory testing reports for your records. This guarantees the unit is leak-free before it ever leaves the manufacturing facility.
Download a standardized measurement template from your chosen manufacturer to ensure no dimensions are missed during the site survey.
Measure the existing unit from rigid points like the tube sheets and casing edges, ignoring deformed or bulging fins.
Compile all operational data, including exact airflow rates, fluid temperatures, and maximum allowable pressure drops.
Identify any environmental hazards, such as salt air or industrial chemicals, to determine if specialized coatings are required.
Contact the engineering team with your completed dataset to initiate thermal modeling and secure an accurate technical quote.
A: Standard lead times typically range from 3 to 6 weeks. Expedited options can reduce this to 1 to 2 weeks for emergency replacements. Lead times depend heavily on material availability, factory capacity, and the complexity of the engineering design. Specialized alloys usually extend the timeline.
A: Never measure bulging or deformed fins. Measure the rigid components like the tube sheets, casing edges, and header plates. Use a manufacturer-provided measurement template to ensure you capture finned area, overall dimensions, and exact connection locations. Double-check all measurements before submission.
A: Evaporators absorb heat by vaporizing refrigerant, requiring specific circuiting to manage phase changes and prevent oil trapping. Condensers reject heat by condensing refrigerant gas back into a liquid. Condensers typically operate at much higher internal pressures, requiring thicker tube walls and different header configurations.
A: Higher FPI increases the surface area, boosting heat transfer capacity. However, it also increases air resistance, forcing fans to work harder. Lower FPI reduces air pressure drop and minimizes fouling in dirty environments. The right FPI balances thermal efficiency with allowable airside pressure drop.
A: Yes. You can upgrade from standard copper/aluminum to heavier wall copper, cupronickel, or add protective e-coatings without altering the physical dimensions. However, changing materials or adding coatings can slightly alter the heat transfer rate, requiring the manufacturer to verify the thermal performance.
A: The manufacturer needs the entering and leaving air temperatures (dry and wet bulb), airflow rate (CFM), entering and leaving fluid temperatures, and fluid flow rate. For direct expansion systems, they also need the refrigerant type, required cooling capacity, and design condensing temperature.
