Thermal management components act as the primary failure points in heavy equipment and industrial machinery. Selecting a manufacturing partner represents a high-stakes engineering decision. Off-the-shelf component suppliers rarely meet the rigorous demands of custom projects. You need custom geometries, strict dimensional tolerances, and reliable production scaling. Generic suppliers simply cannot guarantee these factors. This gap highlights the difference between a basic vendor and a true manufacturing partner. We designed this systematic evaluation framework to help engineering and procurement teams audit a potential tube fin heat exchanger manufacturer. You will learn how to assess technical capabilities, quality control protocols, and supply chain resilience. This guide provides actionable steps to ensure your chosen partner aligns with your operational reality and performance requirements.
Design for Manufacturability (DFM) is Non-Negotiable: A viable partner must provide robust heat exchanger engineering support to bridge the gap between theoretical thermal models and scalable production.
Scalability Requires Proven Infrastructure: Evaluating a manufacturer requires auditing their ability to transition from rapid prototyping to high-volume production without quality degradation.
Compliance Mitigates Liability: Verifying relevant heat exchanger certifications (e.g., ASME, ISO, UL) ensures regulatory compliance and long-term field reliability.
Define exact heat transfer requirements before evaluating suppliers. You must establish the required cooling or heating capacity in kilowatts or BTU/hr. Operating temperature and pressure extremes dictate material yield strength limits. Processed fluid characteristics play a critical role during this initial phase. Identify fluid types, dynamic viscosity, and specific fouling factors early in the design cycle. Phasing considerations matter heavily for thermal calculations. Single-phase liquid flow behaves entirely differently than two-phase condensation or evaporation within the tubes. When pumping high-viscosity glycol mixtures at low ambient temperatures, the fluid often transitions from turbulent to laminar flow. Laminar flow severely degrades the internal heat transfer coefficient. Your manufacturing partner must understand how to design internal tube enhancements to break up this boundary layer.
Spatial constraints inherent in your equipment design dictate the required heat transfer surface area. Footprint limits, rigid mounting points, and strict weight restrictions force engineering compromises. You must map out keep-out zones and allowable airflow paths before requesting manufacturer input. Skid-mounted industrial equipment often requires highly dense fin packs to achieve the necessary thermal rejection within a confined envelope. Containerized systems demand exact dimensional adherence to fit within standard ISO shipping dimensions. Establish these physical boundaries immediately to prevent wasted engineering hours on unbuildable designs.
Environmental factors dictate baseline requirements for structural materials. Corrosive atmospheres demand specific alloys or advanced protective coatings. Coastal environments expose coils to continuous salt spray, necessitating epoxy or e-coating protection to prevent rapid galvanic corrosion between dissimilar metals. Extreme vibration in mobile equipment requires robust joint integrity and heavy-duty structural reinforcement. Mining excavators and railway locomotives subject cooling packages to continuous shock loads. These applications require heavy-gauge steel casings and specialized tube sheet designs to prevent the tubes from shearing at the header joints.
Temperature cycling induces thermal fatigue over time. Copper tubes and aluminum fins expand and contract at different rates during rapid temperature swings. This differential expansion can loosen the mechanical bond between the tube and the fin collar, degrading thermal performance over the equipment's lifespan. These non-negotiable constraints act as your primary filter. They eliminate unqualified suppliers early in the sourcing process. If a supplier cannot meet your vibration tolerances or corrosion resistance baselines, disqualify them immediately. Do not compromise on environmental survivability.
In-house thermal modeling separates true partners from basic metal fabricators. A competent partner uses Computational Fluid Dynamics (CFD) analysis effectively. They simulate complex fluid dynamics, airflow distribution, and phase changes accurately. This heat exchanger engineering support ensures theoretical models translate into functional hardware. The manufacturer must review your CAD files for Design for Manufacturability (DFM). They should suggest modifications to improve heat transfer efficiency while reducing manufacturing complexity.
For example, adjusting tube wall thickness from 0.016 inches to 0.020 inches might improve brazing yields on the factory floor without significantly impacting the overall thermal resistance. Altering fin density can prevent frost buildup in low-temperature applications while maintaining adequate thermal performance. A strong engineering team will also evaluate header manifold designs to ensure uniform fluid distribution across all parallel tube circuits. Poor fluid distribution leads to thermal stratification and drastically reduces the overall capacity of the coil.

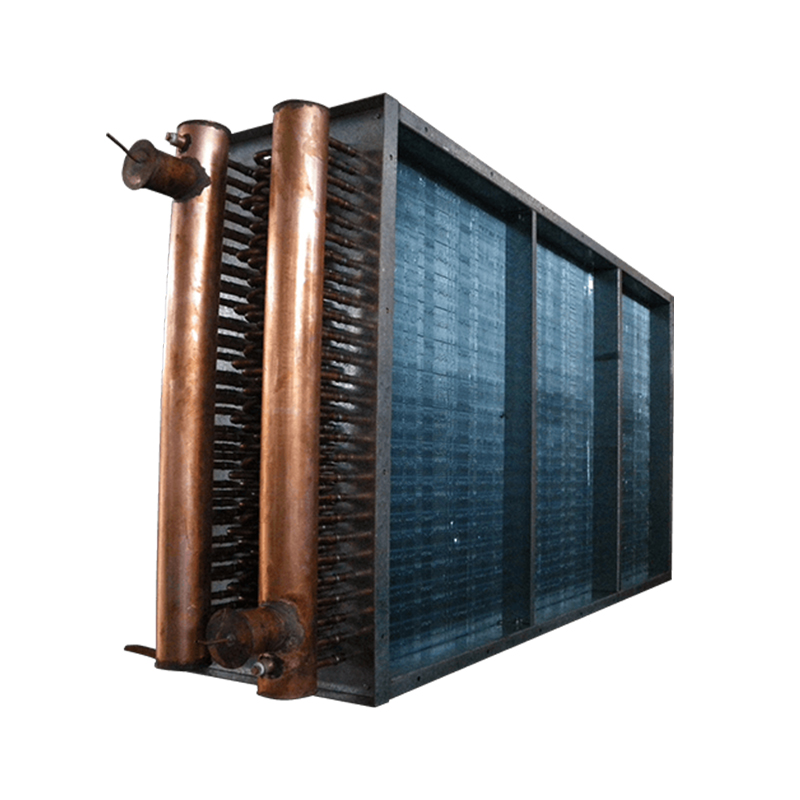

Material pairings directly impact thermal performance and field longevity. Copper tubes paired with aluminum fins offer excellent thermal conductivity and lightweight construction for standard HVAC applications. Cupronickel or stainless steel suits marine environments or highly corrosive industrial processes. Specialized phenolic coatings protect against high-fouling conditions found in chemical processing or wastewater treatment facilities. The manufacturer must optimize the heat transfer surface area within strict spatial limits. Precise tube positioning achieves this optimization effectively.
Tube positioning dictates airflow turbulence and thermal efficiency. A staggered tube arrangement (e.g., 1.00" x 0.866" pitch) forces the air to weave through the bundle. This increases air turbulence, which maximizes the heat transfer surface area and efficiency. Inline arrangements create less turbulence, resulting in a lower air-side pressure drop. Engineers specify inline pitches when fan power is limited or when operating in dusty environments where staggered tubes would clog rapidly. Joining technologies must match the processed fluids and operating pressures. Precision brazing creates high-strength, leak-free joints suitable for high-pressure refrigerants. Mechanical expansion provides a highly reliable alternative for securing tubes to fins in standard water or glycol applications.
Fin Profile Type | Airflow Resistance | Fouling Tendency | Ideal Application Scenario |
|---|---|---|---|
Plain / Flat | Very Low | Very Low | Heavy industrial, dusty environments, agricultural equipment |
Corrugated | Low to Medium | Low | Standard commercial HVAC, clean room environments |
Wavy | Medium | Medium | General process cooling, moderate airborne particulate areas |
Louvered | High | High | Clean environments requiring maximum thermal density |
Slit / Lance | Very High | Very High | Compact electronics cooling, highly filtered air streams |
Prototyping speed and accuracy indicate overall operational maturity. Evaluate how quickly a manufacturer delivers functional, production-intent prototypes. Assess their tooling capabilities during this critical phase. Modular tooling works well for low-volume runs and standard geometries. Unique tube pitches and proprietary fin patterns require custom stamping dies. A reliable partner transitions smoothly from prototypes to full production. They lock in the manufacturing process routing during the prototype phase to ensure high-volume consistency.
Observe their tube fabrication equipment. CNC hairpin benders and automated return bend brazing machines demonstrate a commitment to precision. Manual tube bending often results in wall thinning or micro-fractures at the bend radius, leading to premature field failures under pressure. The fin press lines should utilize continuous lubrication systems to prevent die wear and ensure clean fin collars. Clean fin collars are mandatory for achieving a tight mechanical bond during the tube expansion process.
Audit the production capacity of any potential OEM heat exchanger manufacturer rigorously. Count their active shifts and physical production lines. Compare automated brazing tunnel ovens against manual torch brazing stations. Automation ensures metallurgical consistency across large production batches. When evaluating manual brazing stations, check if the operators use continuous nitrogen purging inside the tubes. Nitrogen purging displaces oxygen, preventing the formation of cupric oxide scale inside the copper tubes. This scale can flake off during operation and destroy downstream compressors or pumps.
Raw material sourcing stability prevents assembly line shutdowns. Investigate their inventory management practices thoroughly. Kanban systems and strategic safety stock agreements mitigate supply chain disruptions. Ask how they handle raw copper and aluminum market volatility. A strong manufacturer maintains buffer inventory to protect your production schedule from sudden material shortages. They should have secondary suppliers qualified for all critical raw materials, including brazing rings, header pipes, and sheet metal casing materials.
Regulatory compliance ensures field safety and global market access. Different industries require specific heat exchanger certifications to operate legally. ISO 9001 demonstrates a robust Quality Management System (QMS) focused on traceability and corrective actions. ASME Boiler and Pressure Vessel Code (BPVC) Section VIII governs pressure vessel safety, dictating strict welding and brazing qualifications. UL 207 marks remain mandatory for refrigerant-containing components in North America, requiring rigorous dielectric and pressure testing. CE and PED directives apply to European markets, categorizing equipment by hazard levels based on internal volume and fluid state.
Never assume compliance based on a website logo. Request documentation of active certifications tailored to your specific fluid types and operating pressure requirements. If your equipment operates at 600 PSI with R410a refrigerant, the manufacturer must provide burst test reports proving a safety multiplier of at least three to five times the maximum operating pressure, depending on the specific regulatory code.
Non-negotiable testing procedures validate structural integrity before shipment. The manufacturer must perform helium leak testing for high-sensitivity applications involving volatile refrigerants. Hydrostatic or pneumatic pressure testing verifies joint strength under operational loads. Burst testing establishes the ultimate failure point of the design, ensuring an adequate safety margin. Destructive testing on sample batches provides vital metallurgical analysis. This analysis validates braze joint penetration and overall manufacturing consistency.
A comprehensive quality assurance protocol should follow a strict sequence on the factory floor:
Visual inspection of fin density, tube expansion uniformity, and casing squareness.
Pneumatic testing using dry nitrogen submerged in a water bath to identify macro-leaks visually.
High-sensitivity helium mass spectrometry for high-pressure refrigerant coils, detecting leaks down to 1x10^-5 atm cc/sec.
Hydrostatic burst testing on random sample batches to verify the ultimate tensile strength of the header joints.
Metallurgical cross-sectioning of braze joints to confirm proper filler metal penetration and the absence of voids.
Final dehydration and vacuum drying to remove all internal moisture before sealing the coil for shipment.
Engineering teams must evaluate the performance trade-offs between custom tooling and standard geometries. Investing time in custom tooling yields a highly optimized coil. This custom design maximizes thermal efficiency for your specific footprint. It often allows you to downsize fans or pumps, saving significant energy across the equipment lifecycle. Custom fin dies allow you to specify the exact louver angle and fin thickness required to hit your thermal targets without exceeding your maximum allowable air-side pressure drop.
Alternatively, adapting a standard design accelerates the initial prototyping phase. However, standard designs often sacrifice efficiency or require equipment modifications to fit. You might have to increase the fan speed to push air through a denser standard coil, which increases acoustic noise and parasitic power draw. Evaluate these trade-offs based on your projected production volumes and system efficiency targets. High-volume production runs easily justify the engineering time required to develop custom geometries.
Location impacts logistics, communication, and supply chain risk. Nearshoring or onshoring offers shorter lead times and simplified freight logistics. Communication remains easier across similar time zones, reducing engineering errors during the critical design phase. Intellectual property protection generally proves stronger domestically, which matters when developing proprietary internal tube enhancements or unique header configurations.
Offshoring typically provides access to massive production scale. However, overseas production often requires higher minimum order quantities (MOQs) to justify shipping containers. Freight volatility, port strikes, and extended shipping times add significant risk to your supply chain. You must weigh the production scale against the logistical complexity of holding larger safety stock inventories. If you choose an overseas partner, ensure they have domestic warehousing and engineering support staff available in your time zone.
Misaligned tolerances create significant handoff failures between engineering and production. Your theoretical design might exceed the manufacturer's actual equipment capabilities. For example, specifying a fin density of 22 fins per inch (FPI) on a heavy-gauge aluminum fin might cause the fin press to tear the metal during the collar drawing process. This mismatch leads to high scrap rates, delayed launches, and compromised performance.
Mitigate this risk by requiring a formal First Article Inspection (FAI). Implement a strict Production Part Approval Process (PPAP) before authorizing full production. These steps force the manufacturer to prove their process capability. Review their Gauge R&R (Repeatability and Reproducibility) studies and process flow diagrams to ensure they can hold your required tolerances consistently across multiple production shifts.
Continuous design iterations derail project timelines quickly. Changes in fluid phasing requirements or spatial limits force complete redesigns. If the mechanical engineering team shrinks the equipment enclosure by two inches late in the development cycle, the thermal engineering team must start over. Establish a frozen design phase early in the project lifecycle. Once tooling begins, halt all non-critical engineering changes.
Define clear Service Level Agreements (SLAs) for engineering revisions and drawing updates. Set strict deadlines for prototype delivery and testing feedback. This discipline keeps the project on schedule and prevents endless engineering loops. Clear communication protocols prevent minor adjustments from causing major production delays. Require weekly cross-functional meetings between your engineering team and the manufacturer's production staff during the initial launch phase.
Draft a comprehensive Request for Proposal (RFP) detailing thermal specifications, spatial constraints, and required testing protocols.
Schedule technical consultations with shortlisted candidates to evaluate their fluid dynamic expertise and DFM capabilities.
Request and verify all relevant quality and pressure vessel certifications before signing non-disclosure agreements.
Demand a facility audit to inspect automated brazing lines, testing chambers, and inventory management systems firsthand.
Establish a clear PPAP timeline to ensure a seamless transition from prototype approval to high-volume manufacturing.
A: You must provide the total heat load, fluid types, and phasing considerations. Specify entering and leaving temperatures for both fluid streams. Include exact flow rates and the maximum allowable pressure drop. Spatial constraints and mounting requirements also dictate the final physical dimensions of the coil.
A: The prototyping phase generally ranges from four to twelve weeks. This timeline depends heavily on tooling requirements and raw material availability. Modular tooling accelerates the process, while custom dies for unique fin patterns or tube pitches extend the lead time significantly.
A: DFM ensures that a theoretical thermal design can actually be built consistently at scale. It reduces scrap rates and minimizes assembly bottlenecks. Engaging in DFM early prevents tolerance mismatches between engineering models and actual factory floor equipment capabilities.
A: Look for ISO 9001 for general quality management. Require ASME BPVC for high-pressure vessels. UL and CSA marks are critical for North American HVAC/R applications. CE and PED compliance is necessary for European markets. Always verify certifications match your specific operating pressures.
A: Manufacturers use several methods depending on application sensitivity. Underwater nitrogen testing identifies larger leaks visually. Hydrostatic testing uses pressurized water to verify structural integrity. High-sensitivity helium mass spectrometry detects microscopic leaks, making it essential for volatile refrigerants or high-vacuum systems.
A: Mechanical expansion uses a physical bullet pushed through the tube to expand it against the fins. Hydraulic expansion uses pressurized fluid inside the tube. Hydraulic expansion provides more uniform contact pressure, reducing thermal contact resistance, but often requires more specialized manufacturing equipment.
A: Tube positioning dictates airflow turbulence and thermal efficiency. Staggered tube arrangements increase air turbulence, which maximizes the heat transfer surface area and efficiency. Inline arrangements create less turbulence, resulting in a lower air-side pressure drop but generally requiring more surface area to achieve the same cooling capacity.
