Refrigeration failure in cold storage and food processing carries massive operational stakes. Product spoilage, regulatory compliance failures, and exponential energy costs from inefficient heat transfer can cripple a facility. Generic HVAC coils are fundamentally unsuited for low-temperature, high-humidity, or aggressive washdown environments. They carry a high risk of rapid frost accumulation, corrosion from sanitation chemicals, and inadequate latent heat removal. This technical evaluation framework helps engineers and facility managers define precise specifications. You will learn how to select a unit engineered for specific facility loads, balance thermodynamic performance with physical durability, and ensure long-term operational efficiency. We focus on matching the exact thermodynamic requirements of your product inventory to the physical construction of the cooling equipment. Proper specification prevents catastrophic product loss and keeps your refrigeration cycle running within optimal parameters.
Load and Airflow Precision: Accurate calculation of CFM, FPM, and coil surface area is non-negotiable; undersizing leads to continuous runtime and icing, while oversizing causes poor humidity control.
Environmental Matching: Material selection (e.g., stainless steel vs. copper) and specialized coatings must align with the facility's specific refrigerant (like Ammonia or CO2), washdown pH levels, and scaling tendencies.
Frost Management: Fin spacing (Fins Per Inch - FPI) must be specified based on the room's operating temperature to manage frost build-up and optimize defrost cycles.
Installation Realities: Physical configuration, including header orientation, coil hand, and minimum wall clearances, dictates long-term maintenance accessibility and system efficiency.

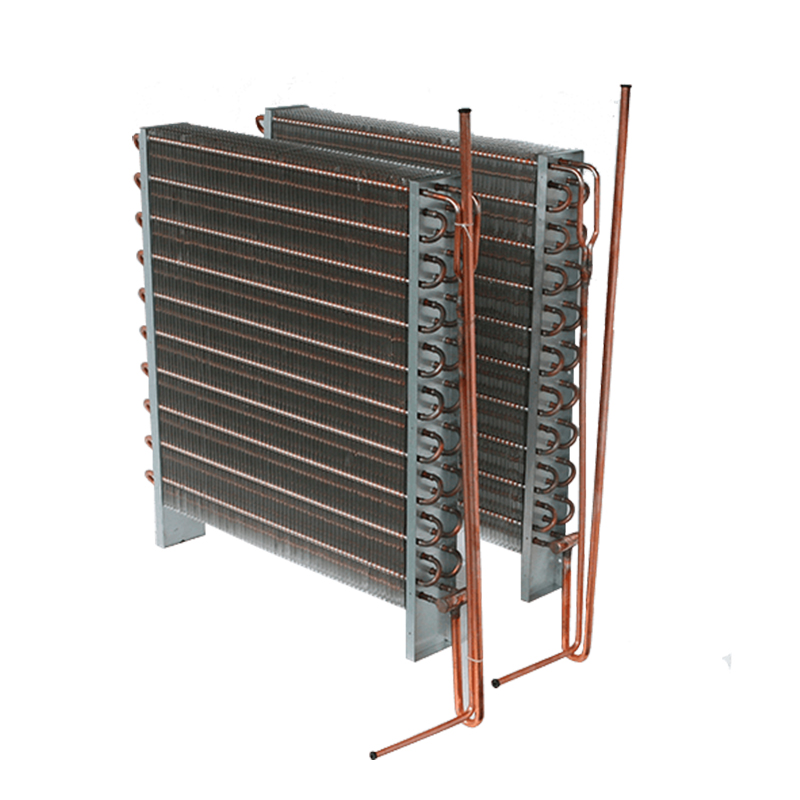

Defining the operational baseline is the first step in system design. A successful cooling coil for cold storage must maintain strict temperature tolerances across massive cubic volumes. It must manage latent loads effectively to control ambient moisture. Furthermore, it must withstand harsh industrial environments without degrading over time. Industrial refrigeration demands a level of precision that standard commercial cooling cannot provide.
You must understand the technical differences between comfort cooling coils and industrial refrigeration coils. Standard HVAC coils prioritize compact footprints. They utilize thin tube walls and tightly packed fins to maximize surface area in a small space. Industrial coils take the opposite approach. They require heavier tube walls to handle high-pressure refrigerants and aggressive defrost cycles. They feature wider fin spacing to accommodate inevitable frost formation without immediately blocking airflow. They also incorporate specialized defrost capabilities and robust drain pan designs to manage heavy condensate loads safely.
Feature | Standard HVAC Coil | Industrial Refrigeration Coil |
|---|---|---|
Tube Wall Thickness | Thin (0.012" - 0.016") | Heavy (0.020" - 0.035"+) |
Fin Spacing | Tight (10-14 FPI) | Wide (3-8 FPI) |
Defrost Mechanism | Off-cycle air | Hot gas, electric, or water |
Operating Environment | Clean, conditioned air | High humidity, corrosive washdowns |
Coil performance directly influences vapor pressure deficits within the storage space. The vapor pressure deficit determines the dehydration rate, commonly known as shrink, of stored food products. When warm product enters a cold room, moisture migrates from the high-pressure product to the low-pressure cold air. If a coil operates with a massive temperature difference (Delta T) between the air and the refrigerant, it acts as a powerful dehumidifier. It strips moisture from the room air rapidly. The dry room air then pulls moisture directly from the stored inventory to reach equilibrium. This continuous cycle causes severe weight loss in the product, directly impacting your bottom line.
The heat sensitivity of your specific inventory dictates the required Delta T and airflow velocity. Delicate produce, like leafy greens or berries, requires a very low Delta T and gentle airflow. This prevents wilting and weight loss. Packaged frozen meats can tolerate higher air velocities and larger temperature differentials because the packaging acts as a vapor barrier. You must engineer the coil to match the exact thermodynamic requirements of the product it protects.
Accurate heat load calculations form the foundation of evaporator coil specifications. You cannot guess these numbers. You must calculate four distinct load categories. Transmission load accounts for heat bleeding through walls, floors, and ceilings. You calculate this using the R-value of your insulation and the temperature differential between the inside and outside of the envelope. Product load represents the sensible and latent heat you must remove to bring the inventory down to the target temperature. This requires knowing the specific heat capacity of the exact food product being stored. Internal load includes heat generated by forklifts, lighting, and personnel working in the space. Every motor and light bulb adds watts of heat that the coil must remove. Infiltration load accounts for warm, moist air entering through doors and loading docks. This is often the largest variable, heavily dependent on door cycle times and the presence of strip curtains or air doors.
Once you determine the total heat load, you can calculate the required physical dimensions of the coil. Use this specific formula for calculating Coil Area:
Coil Area (square feet) = (Finned Height in inches × Finned Length in inches) ÷ 144
Airflow velocity across that surface area is equally critical. You calculate Coil Air Velocity using this framework:
CFM of Air ÷ Coil Square Feet = Feet Per Minute Velocity (FPM)
Varying the FPM impacts capacity, moisture carryover, and product safety. If the FPM is too high, the air moves too fast to transfer heat effectively. High velocity can also blow condensed water droplets off the fins and into the room, creating slip hazards and biological risks. If the FPM is too low, capacity drops, and the coil may freeze unevenly.
The system's feed type dictates the internal circuiting design, header sizing, and acceptable pressure drops within the coil. Direct Expansion (DX) coils rely on a thermostatic expansion valve to meter refrigerant. DX coils require complex distributor networks to ensure equal feeding to every circuit. They also require superheat at the outlet to protect the compressor from liquid slugging. Because the last portion of the coil contains only superheated vapor, it does very little actual cooling. This makes DX coils inherently less efficient per square foot of surface area.
Pumped Liquid Overfeed systems operate differently. They pump three to four times the amount of liquid refrigerant needed for evaporation through the coil. This ensures the internal tube surfaces remain completely wetted from inlet to outlet, drastically improving the internal heat transfer coefficient. Overfeed coils require larger headers to handle the massive volume of liquid-vapor mixture exiting the unit. They eliminate the need for superheat at the coil, maximizing the active cooling surface. Gravity Flooded and Secondary Coolant (Glycol) systems also require specific circuiting strategies to balance pressure drop with heat transfer efficiency.
Standard configurations for commercial and industrial applications typically range from 4 to 8 rows deep. Row depth directly impacts the air temperature drop (Delta T) across the coil. A deeper coil removes more heat from the air per pass, but it also creates higher air resistance. This requires more powerful, energy-consuming fans to push the air through the fin pack.
Evaluate common tube diameters carefully. Manufacturers typically offer 3/8", 1/2", and 5/8" options. Smaller tubes provide excellent internal heat transfer coefficients but create high refrigerant pressure drops. They work well for compact DX systems. Larger 5/8" tubes handle massive capacities and reduce pressure drop, making them ideal for large industrial overfeed systems. However, larger tubes require a significantly larger total refrigerant charge.
You must understand the critical relationship between room temperature, evaporating temperature, and frost formation. Any time the coil surface temperature drops below the dew point of the room, moisture condenses on the fins. If the surface temperature is below freezing, that moisture turns to frost. Frost acts as an insulator, destroying heat transfer efficiency.
Room Temperature | Application | Recommended Fin Spacing (FPI) |
|---|---|---|
Above 35°F | Produce Coolers, Prep Rooms | 6 to 8 FPI |
28°F to 34°F | Meat Coolers, Staging Areas | 4 to 6 FPI |
-10°F to 0°F | Standard Freezers | 3 to 4 FPI |
Below -10°F | Blast Freezers | 2 to 3 FPI |
Provide strict guidelines for specifying Fins Per Inch (FPI). Tight fin spacing packs more surface area into a smaller box, but it bridges with ice rapidly. Use 4 FPI for freezers and sub-freezing applications. The wide spacing allows a layer of frost to build without immediately choking off the airflow. Use 6 to 8 FPI for medium-temperature coolers where frost formation is slower and defrost cycles can clear the coil quickly. Proper FPI specification prevents rapid ice bridging and reduces excessive defrost energy consumption.
Material selection dictates the lifespan of your equipment. Copper remains the standard for systems utilizing HFC or HFO refrigerants. It offers exceptional thermal conductivity and is easy to braze. Aluminum tubes offer a lightweight alternative for specific applications, though they require specialized manufacturing techniques. Stainless steel is absolutely mandatory for industrial Ammonia systems. Ammonia rapidly corrodes copper and brass. Stainless steel also provides superior resistance in highly corrosive environments, though it carries a lower thermal conductivity rating than copper.
Tube Material | Refrigerant Compatibility | Corrosion Resistance | Thermal Conductivity |
|---|---|---|---|
Copper | HFC, HFO, CO2 | Poor against Ammonia/Acids | Excellent |
Aluminum | Ammonia, HFC, CO2 | Moderate | Good |
Stainless Steel | Ammonia, CO2, Corrosives | Excellent | Low |
Fin material selection impacts both heat transfer and condensate management. Standard aluminum fins work well in clean environments but struggle with moisture retention. Introducing a hydrophilic fin evaporator coil solves many drainage issues. Hydrophilic coatings alter the surface tension of the metal. They reduce the contact angle of water droplets.
Instead of beading up and bridging the gap between fins, the condensate sheets off rapidly. This rapid shedding prevents water from freezing in place during the cooling cycle. It drastically reduces defrost times because less ice accumulates. Furthermore, rapid drainage prevents standing water within the fin pack, eliminating a primary breeding ground for biological growth in food processing areas.
Food processing facilities represent some of the most hostile environments for HVAC equipment. Airborne acids from processing certain foods attack bare metal. Sanitation crews use aggressive washdown chemicals with extreme pH levels to maintain hygiene standards. Saline environments in seafood processing facilities accelerate galvanic corrosion.
You must evaluate robust coating solutions. Electro-deposited epoxy coatings provide a uniform, pinhole-free barrier across the entire coil surface. The electro-coating process submerges the entire coil in a bath, applying an electrical charge to bond the epoxy to every microscopic crevice. Phenolic coatings offer excellent resistance to acidic environments but can be brittle. When specifying these coatings, you must account for their impact on thermal resistance. Coatings add a microscopic layer of insulation to the fins. You may need to upsize the coil slightly to compensate for this thermal penalty and maintain the required capacity.
Address the scaling tendency of facility water if you utilize water-defrost systems. Hard water leaves mineral deposits on the fins and tubes during every defrost cycle. Over time, this scale builds up, restricting airflow and insulating the tubes. You must specify appropriate water treatment systems or select materials that can withstand frequent chemical descaling procedures.
Physical configuration determines whether the coil will actually fit and function in your space. You must clearly define the "Coil Hand" before ordering. Face the entering air side of the coil. If the refrigerant connections are on your right, it is a right-hand coil. If they are on your left, it is a left-hand coil. Getting this wrong results in piping nightmares on the job site.
Header orientation rules are non-negotiable. For proper refrigerant distribution, configure the headers for supply low leaving and return high entering. Feeding liquid into the bottom of the coil ensures the tubes fill evenly. Pulling suction from the top ensures proper oil return to the compressor. Incorrect header orientation causes liquid trapping, erratic valve operation, and eventual compressor failure.
Spatial tolerances dictate airflow efficiency. State the strict requirement for minimum clearances during installation. You must maintain a minimum 2-inch gap between the back of the coil and the wall. This gap prevents air starvation.
If you mount the coil flush against a wall, the fans cannot pull air evenly across the entire fin face. The air will channel through the path of least resistance, leaving large sections of the coil completely inactive. This uneven airflow destroys capacity, causes localized freezing, and forces the active sections of the coil to work harder, leading to premature failure.
Condensate management is a critical safety issue in sub-freezing environments. Detail the specifications for drain pans meticulously. Standard unheated pans will freeze solid in a cold storage room. You must specify heated pans using either hot gas loops or electric heater cables. The heat prevents condensate from freezing before it can exit the pan.
Ensure the pan features a proper slope toward the drain connection. Flat pans hold standing water, which eventually freezes and overflows, creating dangerous ice slicks on the floor below. Furthermore, you must insulate and heat trace the external drain lines. A perfectly heated pan is useless if the water freezes solid inside the drain pipe ten feet away from the unit.
You must select the appropriate defrost method based on room temperature and available utilities. Off-cycle air defrost only works in rooms maintained above 36°F. The fans continue to run while the refrigerant flow stops, using the ambient room air to melt the frost. Electric defrost uses resistive heater elements inserted directly into the fin block. It is cheap to install but highly expensive to operate due to electrical consumption. Hot gas defrost routes high-pressure, high-temperature discharge gas from the compressor directly into the coil. This method melts ice rapidly from the inside out and is highly energy-efficient, though it requires complex piping and valve arrangements. Water defrost sprays heated water over the fin pack. It clears ice extremely fast but requires robust drainage systems and introduces massive amounts of moisture into the room if not managed perfectly.
Installation practices dictate long-term reliability. Discuss piping and evacuation protocols with your contractors. Before charging the system, the piping network must be completely free of moisture and non-condensable gases. Moisture inside a refrigeration system reacts with the oil and refrigerant to form acids, which eat the compressor windings from the inside out.
Contractors must flow nitrogen through the copper lines during all brazing operations. Brazing without nitrogen creates cupric oxide scale inside the tubes. When the system starts, the refrigerant washes this scale off the walls and carries it directly into the expansion valves and compressor oil, causing severe mechanical damage.
Note the absolute necessity of measuring vacuum correctly. Contractors must use a high-quality micron gauge. They must locate this gauge as far from the vacuum pump as possible. The vacuum reading at the pump will always be deeper than the reading at the furthest reaches of the coil. Measuring at the furthest point ensures the entire evaporator coil and piping network have achieved the required vacuum level. A proper evacuation pulls the system down below 500 microns and holds that vacuum after isolating the pump. If the pressure rises and stops, moisture remains in the system. If it rises continuously to atmospheric pressure, you have a leak.
Compile your facility's specific load data, including product throughput, transmission heat, and infiltration rates.
Document the ambient conditions and exact washdown chemicals used by your sanitation teams to determine required coil coatings.
Gather accurate spatial blueprints of the installation area to verify coil hand, header orientation, and minimum wall clearances.
Engage with a specialized engineering firm to finalize your tube diameter, row depth, and fin spacing based on your collected data.
A: The ideal spacing depends on the operating temperature. Use 4 Fins Per Inch (FPI) for sub-freezing environments and freezers. This wide spacing prevents rapid ice bridging and allows the coil to operate longer between defrost cycles. For medium-temperature coolers with lower latent loads, 6 to 8 FPI is standard.
A: You determine CFM by analyzing the total heat load and the desired temperature difference. First, calculate the coil area using the formula: (Finned Height x Finned Length) / 144. Then, determine the target Feet Per Minute (FPM) velocity. Multiply the Coil Area by the FPM to find the required CFM.
A: It is a coil treated with a specialized coating that reduces the contact angle of water droplets. Instead of beading up, condensation sheets off the fins rapidly. You should use it in high-humidity environments to reduce defrost times, prevent ice bridging, and inhibit biological growth.
A: A minimum clearance of 2 inches is required to prevent air starvation. If the coil is too close to the wall, air cannot distribute evenly across the fin pack. This causes uneven cooling, localized freezing, and a severe reduction in overall system capacity.
A: Proper header orientation ensures efficient refrigerant flow and oil management. The standard rule is supply low leaving and return high entering. Feeding liquid at the bottom ensures even distribution through the circuits, while pulling suction from the top facilitates proper oil return to the compressor.
A: Stainless steel or aluminum tubes are required for industrial ammonia systems. You cannot use copper. Ammonia is highly corrosive to copper and brass alloys. Stainless steel provides the necessary chemical resistance and structural integrity to handle high-pressure ammonia refrigeration cycles safely.
